Product Overview

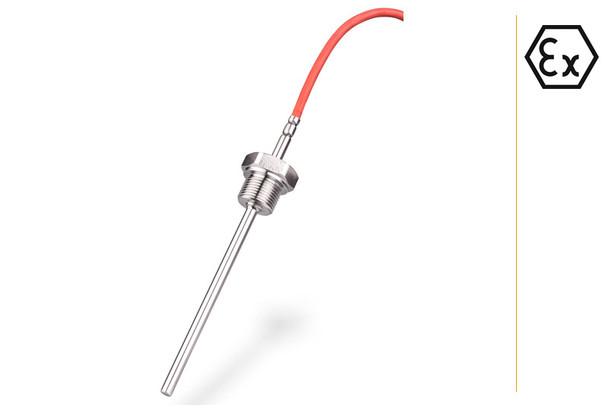

The Aplisens CT E1 (CTE1) Cable Temperature Sensor is built-to-order based on RTD element, wiring, sensor diameter, cable length, and ATEX Ex ia requirements. For accurate selection and pricing, please call 865-900-8844 or email KSmith@CPSCalibrations.com.
The Aplisens CT E1 (CTE1) is part of the cable temperature sensor family (CT GE1 / CT E1 / CT R6 / CT E2), built for industrial temperature measurement using an RTD element (Pt). It is configured by selecting the element type, accuracy class, wiring, sensor diameter, and cable length, with optional ATEX intrinsic safety (Ex ia) versions when required.
- Family: Cable temperature sensors (CT GE1, CT E1, CT R6, CT E2)
- Element: Pt or 2xPt RTD options
- Wiring: 2, 3, or 4 wires
- Build options: multiple diameters and cable lengths
- Hazardous area option: ATEX Ex ia available
Fastest quote: tell us sensor type (CT E1), diameter, cable length (Lp), Pt or 2xPt, accuracy class, and wire count.
| Feature | Details |
|---|---|
| Model | CT E1 (CTE1) Cable Temperature Sensor |
| Measuring element | Pt or 2xPt |
| Element accuracy class | AA, A, B, C or 1, 2, 3 |
| Wire count | 2 / 3 / 4 wires |
| Sensor diameter | 4 / 5 / 6 mm (non-standard on request) |
| Cable length | Lp (length specified in ordering code) |
| ATEX option | Ex ia versions available (certificate option) |
Need help picking the right cable sensor style (CT E1 vs CT GE1 vs CT E2)? Tell us your mounting/connection needs and we’ll guide you.
CTE1 pricing depends on configuration. To quote correctly, we typically confirm:
| What We Need | Examples (from ordering procedure) |
|---|---|
| Sensor type | CT E1 |
| ATEX certificate | Standard (no Ex ia) or Ex ia option |
| Diameter | 4 / 5 / 6 mm |
| Cable length | Lp (example: 2000 mm) |
| Element | Pt or 2xPt |
| Class | AA / A / B / C or 1 / 2 / 3 |
| Wires | 2 / 3 / 4 |
Example ordering code format: CT E1 / Ø6 / Lp=2000 / Pt / Class A / 4-wire (format shown in datasheet).
Call 865-900-8844 or email KSmith@CPSCalibrations.com with your configuration and we’ll send a formal quote.
Need an Ex ia build? Tell us your zone/classification and we’ll confirm the correct certified configuration.
