Product Overview
The Aplisens Measuring Inserts W2, W4, W5 and compatible clamping grips are configured by insert type, diameter, element type (RTD/TC), class, mounting length (Lw), and grip style (UG/UC1/UC2/US/USG). For accurate selection and pricing, please call 865-900-8844 or email KSmith@CPSCalibrations.com.

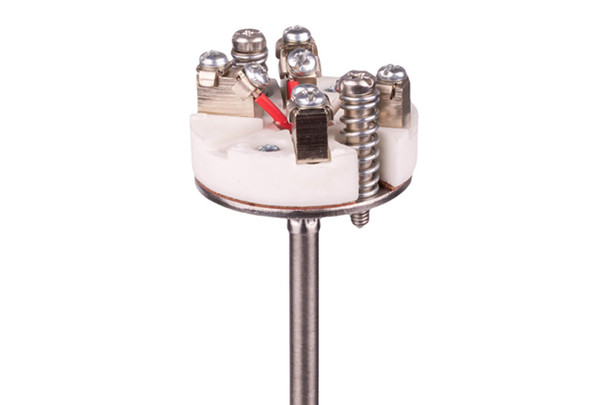

Aplisens Measuring Inserts W2, W4, W5 are temperature sensor inserts intended for installation using clamping grips (UG, UC1, UC2, US, USG). Inserts can be configured with RTD elements (Pt / 2xPt) or thermocouple elements (J/K/S/B, single or dual) and are selected by insert type, mounting length Lw, and (for W2) available diameters.
- Insert types: W2, W4, W5
- Element options: Pt, 2xPt, J/K/S/B (single or dual)
- Element class: AA, A, B or 1, 2
- Mounting length: Lw (as specified)
- Clamping grips: UG, UC1, UC2, US, USG
Fastest quote: tell us insert type (W2/W4/W5), element (Pt or TC type), class, Lw length, and the clamping grip style/size you need.
| Feature | Details |
|---|---|
| Insert types | W2, W4, W5 |
| Insert diameter (W2) | Ø3, Ø4.5, Ø6, Ø8 |
| Element options | Pt / 2xPt or J/K/S/B (single or dual) |
| Element class | AA, A, B or 1, 2 |
| Mounting length | Lw (as specified) |
| Clamping grips (examples) | UG, UC1, UC2, US, USG (multiple sizes/materials/seals available) |
| Notes | Measuring ranges and maximum temperatures vary by insert type, element, and shield material (see datasheet tables). |
Pricing depends on the insert configuration and clamping grip selection. To quote correctly, we typically confirm:
| What We Need | Examples |
|---|---|
| Insert type | W2, W4, or W5 |
| Diameter | Ø3 / Ø4.5 / Ø6 / Ø8 (W2) |
| Mounting length | Lw = required mounting length |
| Element type | Pt / 2xPt or J/K/S/B (single or dual) |
| Element class | AA, A, B or 1, 2 |
| RTD wires (if Pt) | 2 / 3 / 4 wires |
| Clamping grip | UG / UC1 / UC2 / US / USG (size/material/seal) |
Example format: CT / W2 / Ø8 / Lw=405 / Pt100 / A / 3-wire (format varies by build).
Call 865-900-8844 or email KSmith@CPSCalibrations.com with your configuration and we’ll send a formal quote.
Need help matching the correct clamping grip size (UG/UC/US) to your shield diameter and mounting? Reach out and we’ll help.
