Product Overview
Pricing Available Upon Request
The Aplisens PEM-1000 is configured per application (pipe size, liner, electrode material, outputs, and power options). To ensure proper selection and accurate pricing, please call 865-900-8844 or email KSmith@CPSCalibrations.com for a custom quote.
The Aplisens PEM-1000 is configured per application (pipe size, liner, electrode material, outputs, and power options). To ensure proper selection and accurate pricing, please call 865-900-8844 or email KSmith@CPSCalibrations.com for a custom quote.

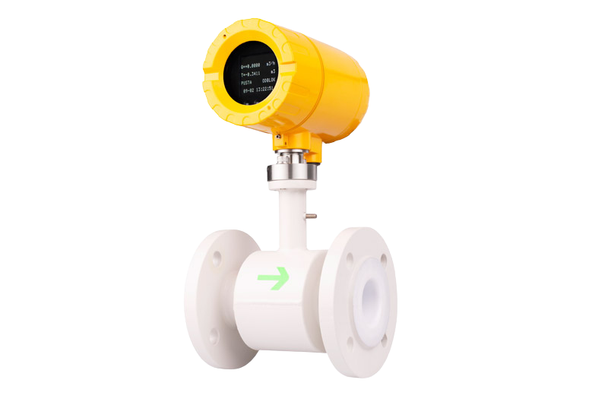

The Aplisens PEM-1000 is an electromagnetic flowmeter designed for bidirectional measurement of conductive liquids (minimum conductivity ≥ 5 μS/cm). It is commonly used in water/wastewater, utilities, and industrial process applications where accurate, stable flow measurement is required.
- Wide size range: DN10–DN1000 (ANSI 0.5"–40")
- High accuracy: 0.5% standard (0.2% available)
- Industrial outputs: 4–20 mA + pulse/frequency output
- Communications: Modbus RTU via RS-485
- Flexible installation: compact or remote transmitter options
- Special installation option: version available for applications with no straight inlet/outlet pipe runs
- Fast setup: local display/buttons and optional wireless configuration via smartphone/tablet
If you tell us your pipe size, fluid, temperature, pressure, power available, and outputs needed, we’ll quote the correct PEM-1000 configuration.
| Feature | Details |
|---|---|
| Manufacturer / Model | Aplisens PEM-1000 Electromagnetic Flowmeter |
| Measurement | Bidirectional flow measurement (conductive liquids) |
| Minimum Conductivity | ≥ 5 μS/cm |
| Nominal Sizes | DN10–DN1000 / ANSI 0.5"–40" |
| Accuracy | ±0.5% of reading (standard) / ±0.2% (special version) |
| Max Static Pressure | 1.6 MPa standard (higher ratings available on request) |
| Analog Output | 4–20 mA (active; passive on request) |
| Communications | Modbus RTU / RS-485 |
| Pulse / Frequency Output | Pulse (uni/bidirectional) or frequency output |
| Power Supply | 90–260 V AC (50 Hz) or 10–36 V DC |
| Protection Rating | Control unit: IP66 (IP67 on request) / Sensor: IP67 (IP68 on request) |
| Ambient Temperature | -20°C to +60°C |
| Process Connection | Flanged (DIN or ANSI) |
| Electrodes | 316L standard (Hastelloy / Tantalum available) |
| Liner Options | Hard rubber / Neoprene / PTFE (range depends on size) |
PEM-1000 pricing depends on configuration. We’ll confirm the items below to ensure you get the right build:
| What We Need | Typical Choices |
|---|---|
| Version | Compact (transmitter + sensor together) or Remote (separate transmitter) |
| Pipe Size / Flange | DN/ANSI size, DIN/ANSI flange rating |
| Fluid / Conductivity | Liquid type and conductivity (≥ 5 μS/cm) |
| Temperature & Pressure | Process temperature and pressure / required pressure rating |
| Liner Material | Hard rubber, Neoprene, or PTFE (based on chemical + temperature) |
| Electrode Material | 316L standard; Hastelloy/Tantalum for aggressive media |
| Power | 90–260 VAC or 10–36 VDC |
| Outputs / Comms | 4–20 mA, pulse/frequency output, Modbus RTU (RS-485) |
| Installation Constraints | Standard installation or special version for limited straight runs |
Call 865-900-8844 or email KSmith@CPSCalibrations.com and we’ll confirm the configuration and send a formal quote.
