Product Overview
The Aplisens PCE-28.MODBUS is configured per application (pressure range, process connection, housing / ingress rating, hazardous-area approvals, and Modbus settings). To ensure proper selection and accurate pricing, please call 865-900-8844 or email KSmith@CPSCalibrations.com for a custom quote.

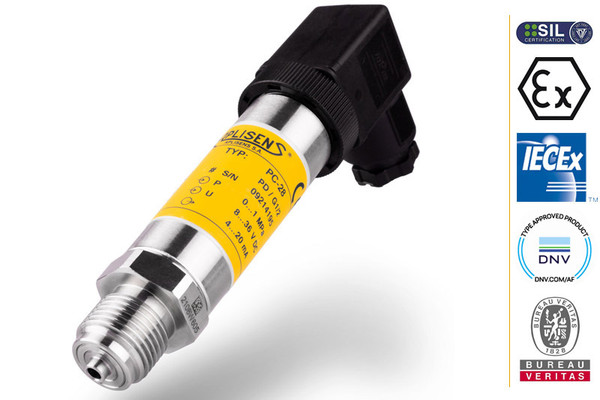

The Aplisens PCE-28.MODBUS is a compact pressure transmitter with Modbus RTU digital communication for direct integration into PLC and SCADA systems. It is designed for industrial measurement of gases, vapors, and liquids (application dependent) and is available in multiple housings, process connections, and certification variants.
- Digital communications: Modbus RTU over RS-485
- Long network runs: designed for up to 1200 m transmission range (application dependent)
- Selectable addressing: 1–247 device addressing
- Hazardous area options: intrinsic safety and explosion-proof versions available (ATEX/IECEx)
- Optional mode: special version can operate in 4–20 mA mode (when configured)
Share your pressure range, media, temperature, process connection, and any ATEX/IECEx needs—then we’ll confirm the correct configuration and quote it correctly.
| Feature | Details |
|---|---|
| Model | PCE-28.MODBUS |
| Communication | Modbus RTU (RS-485) |
| Power Supply | 4–28 VDC (variant dependent) |
| Addressing | 1–247 devices |
| Baud Rates | 1200 to 115200 bps (configurable) |
| Accuracy | ±0.1% of calibrated range |
| Wetted Parts | 316L stainless steel (standard) |
| Housing / Ingress | Multiple housing styles available (IP ratings vary by version) |
| Measuring Ranges | Wide selection from mbar ranges up to high-pressure ranges (see datasheet) |
| Optional Output Mode | Special version: switchable to 4–20 mA mode (per datasheet) |
| Approvals | ATEX / IECEx options available (Exi / Exd variants) |
For exact compatibility (media, temperature, pressure limits), confirm the version/housing and process connection from the ordering code.
PCE-28.MODBUS pricing depends on configuration. To quote correctly, we typically confirm:
| What We Need | Examples |
|---|---|
| Pressure Type | Gauge or Absolute |
| Pressure Range | Normal operating pressure + maximum / overpressure expectations |
| Process Media | Gas / vapor / liquid and any compatibility concerns |
| Process Temperature | Normal and maximum temperature |
| Process Connection | M20×1.5, G1/2, 1/2” NPT, flush diaphragm options, etc. |
| Housing / IP Rating | Compact, cable gland, IP67/IP68 variants (application dependent) |
| Hazardous Area Requirement | Exi (intrinsic safety) or Exd (explosion-proof), ATEX/IECEx |
| Modbus Network Needs | Baud rate, parity, addressing, cable length, termination strategy |
| Optional 4–20 mA Mode | Needed or not (special version) |
Call 865-900-8844 or email KSmith@CPSCalibrations.com and we’ll confirm the configuration and send a formal quote.
