Product Overview
The Aplisens CT-25 Temperature Sensor is configured by immersion length, probe diameter, electrical connector, and process connection. For accurate selection and pricing, please call 865-900-8844 or email KSmith@CPSCalibrations.com.

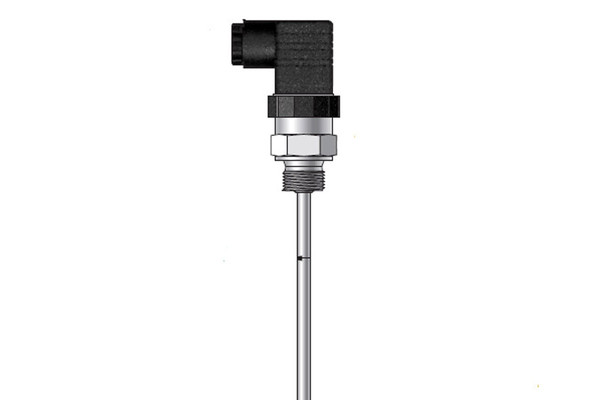

The Aplisens CT-25 is a compact RTD temperature sensor designed for temperature measurement of liquid and gaseous media in the range of -40 to +100°C. The sensor features stainless steel casing and wetted parts (316), and is available with either an angular connector DIN EN 175301-803 (PD version) or M12x1 connector (PM12 version). :contentReference[oaicite:0]{index=0}
- Measuring range: -40…+100°C :contentReference[oaicite:1]{index=1}
- Measuring element: Pt100 :contentReference[oaicite:2]{index=2}
- Wetted parts material: 316 stainless steel :contentReference[oaicite:3]{index=3}
- Process connection: G1/2" (others on request) :contentReference[oaicite:4]{index=4}
- Immersion length: 50…1000 mm :contentReference[oaicite:5]{index=5}
- Probe diameter: Ø4 / Ø6 / Ø8 mm :contentReference[oaicite:6]{index=6}
- Ingress protection: PD = IP65, PM12 = IP67 :contentReference[oaicite:7]{index=7}
Need a specific length or a different process thread? We can configure CT-25 to match your application and quote it.
| Feature | Details |
|---|---|
| Model | CT-25 Temperature Sensor :contentReference[oaicite:8]{index=8} |
| Sensor Type | RTD (Pt100) :contentReference[oaicite:9]{index=9} |
| Measuring Range | -40…+100°C :contentReference[oaicite:10]{index=10} |
| Accuracy | ±(0.3 + 0.005|t|)°C, Class B per IEC 60751 :contentReference[oaicite:11]{index=11} |
| Process Connection | G1/2" (other on request) :contentReference[oaicite:12]{index=12} |
| Immersion Length | 50…1000 mm (standard lengths listed; other on request) :contentReference[oaicite:13]{index=13} |
| Probe Diameter | Ø4, Ø6, Ø8 mm :contentReference[oaicite:14]{index=14} |
| Wetted Material | 316 stainless steel :contentReference[oaicite:15]{index=15} |
| Electrical Connection | PD (DIN EN 175301-803) or PM12 (M12x1) :contentReference[oaicite:16]{index=16} |
| Ingress Protection | PD = IP65, PM12 = IP67 :contentReference[oaicite:17]{index=17} |
| Extension Neck | On request :contentReference[oaicite:18]{index=18} |
| Wiring Options | 2-wire, 3-wire; 2x2-wire (PM12 only) :contentReference[oaicite:19]{index=19} |
CT-25 pricing depends on configuration. To quote correctly, we typically confirm:
| What We Need | Options (per datasheet) |
|---|---|
| Electrical Connection | PD (DIN EN 175301-803) or PM12 (M12x1) :contentReference[oaicite:20]{index=20} |
| Immersion Length | L = … mm (50…1000 mm; standard lengths available) :contentReference[oaicite:21]{index=21} |
| Probe Diameter | Ø4 / Ø6 / Ø8 mm :contentReference[oaicite:22]{index=22} |
| Process Thread | G1/2" (other on request) :contentReference[oaicite:23]{index=23} |
| Measuring Element | Pt100 :contentReference[oaicite:24]{index=24} |
| Number of Wires | 2, 3, or 2x2 (PM12 only) :contentReference[oaicite:25]{index=25} |
Ordering format (from datasheet): CT-25/___/L=...mm/___/___/___/___. :contentReference[oaicite:26]{index=26}
Call 865-900-8844 or email KSmith@CPSCalibrations.com with your length, connector, and diameter, and we’ll send a formal quote.
Need help picking PD vs PM12 or 2-wire vs 3-wire? Reach out and we’ll help.
