Product Overview
The Aplisens CT-RTD Resistance Temperature Sensor is built-to-order based on element type, sheath/material, insertion length, process connection, and head/connection options (including hazardous-area approvals when required). For accurate selection and pricing, please call 865-900-8844 or email KSmith@CPSCalibrations.com.

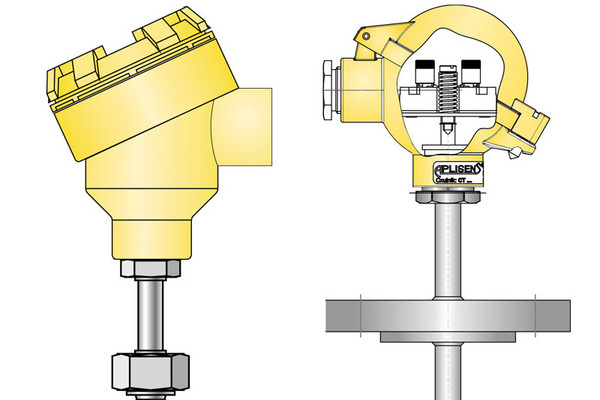

The Aplisens CT-RTD (resistance temperature detector) sensors are industrial temperature probe assemblies designed for accurate measurement of liquids and gases in process applications. CT-RTD sensors are configurable by selecting the RTD element (e.g., Pt-type elements), the sheath/material, insertion length, process connection, and head/termination style required for your installation. For hazardous locations, certified versions may be specified where required.
- Sensor type: RTD (element options per datasheet)
- Configurable build: length, process connection, head/termination, materials
- Applications: industrial process temperature measurement and control
- Optional approvals: ATEX / IECEx certified builds available when specified
Fastest quote: send your required temperature range, insertion length, process thread/flange, and whether the area is classified (ATEX/IECEx).
| Feature | Details |
|---|---|
| Model | CT-RTD Resistance Temperature Sensor |
| Measuring element | RTD element options per CT-RTD datasheet (e.g., Pt-type elements) |
| Accuracy / class | Per datasheet (IEC/EN RTD accuracy class depending on element selection) |
| Construction | Probe/sheath and head/termination options per datasheet |
| Process connection | Threaded / flanged / compression options per datasheet |
| Lengths | Insertion/stem lengths per datasheet |
| Hazardous area | ATEX / IECEx certified variants available when specified |
If you want this table fully populated with exact numbers (ranges, classes, materials, connection list), upload the CT-RTD PDF in this chat and I’ll fill it in 1:1 from the datasheet.
CT-RTD pricing depends on configuration. To quote correctly, we typically confirm:
| What We Need | Examples |
|---|---|
| RTD element | Element type and accuracy class per datasheet (e.g., Pt-style element selection) |
| Temperature range | Your operating range and required accuracy |
| Insertion length | Required immersion length (mm/in) |
| Process connection | Thread size/type, flange spec, or compression fitting requirement |
| Materials | Wetted/sheath materials compatible with your media |
| Termination | Head type, cable outlet, connector, or junction box style |
| Area classification | General purpose vs ATEX / IECEx requirement |
Call 865-900-8844 or email KSmith@CPSCalibrations.com with your connection + length + temperature range and we’ll send a formal quote.
Need help selecting the correct RTD build (element + sheath + connection + approvals)? Reach out and we’ll help.
