Product Overview
The Aplisens Thermowells / Protective Shields (welded and drilled styles) are configured by shield type, mounting length (L / Lo), process connection thread (e.g., M20x1.5 or G1/2"), and material. For accurate selection and pricing, please call 865-900-8844 or email KSmith@CPSCalibrations.com.

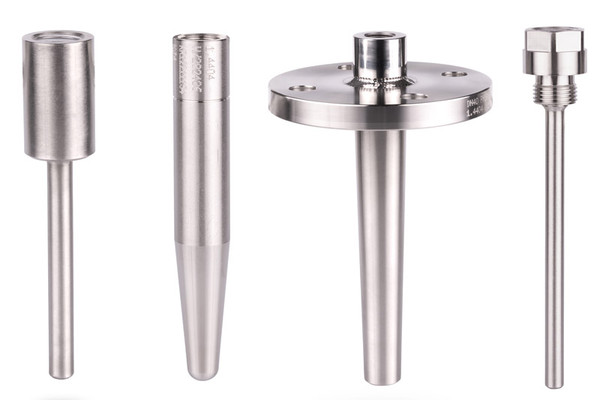

Aplisens Thermowells / Protective Shields are designed to protect temperature sensors (RTDs and thermocouples) in industrial processes. The datasheet covers welded thermowells and drilled thermowells, with multiple styles to match different mounting and process requirements.
- Welded thermowells: OG series (e.g., OG1, OG2, OG3) and T1
- Drilled thermowells: SWG, SW1 / SW2, and SW1T / SW2T
- Common connections: M20x1.5 or G1/2" (varies by type)
- Used with: temperature probes/inserts to improve durability and serviceability
Fastest quote: tell us the shield type (OG / T1 / SWG / SW1 / SW2 / SW1T / SW2T), thread (M20x1.5 or G1/2"), material, and insertion length (L/Lo).
| Feature | Details |
|---|---|
| Product type | Thermowells / protective shields for temperature sensors |
| Construction groups | Welded thermowells (OG… / T1) and drilled thermowells (SWG / SW1 / SW2 / SW1T / SW2T) |
| Connection threads (typical) | M20x1.5 or G1/2" (depending on model) |
| Mounting lengths | L and/or Lo (varies by thermowell type) |
| Material (examples) | 316/316L stainless steel and other high-temperature steels (application dependent) |
| Load limits | Admissible load graphs included in datasheet (varies by type and temperature) |
If you tell me which exact thermowell type you’re listing (example: “OG2.15” or “SW1T”), I can tailor the specs table to that exact model.
Thermowell pricing depends on configuration. To quote correctly, we typically confirm:
| What We Need | Examples |
|---|---|
| Shield type | OG… (welded), T1 (welded), SWG (drilled), SW1/SW2 (drilled), SW1T/SW2T (drilled) |
| Mounting length | L = required insertion length; Lo where applicable |
| Process connection | M20x1.5 or G1/2" (or flange option where applicable) |
| Material | 316/316L stainless or high-temperature alloy/steel options based on process conditions |
| Process conditions | Media, temperature, pressure/flow and vibration (used to confirm admissible load) |
Need help selecting welded vs drilled thermowell? Send the process conditions and we’ll help pick a safe thermowell type and length.
Want us to verify the admissible load chart for your process? Send temperature + pressure/flow conditions and the thermowell type you’re considering.
