Product Overview
The Aplisens ZPK is configured per application (DN size, pressure class, material selection, and mounting configuration). To ensure proper selection and accurate pricing, please call 865-900-8844 or email KSmith@CPSCalibrations.com for a custom quote.

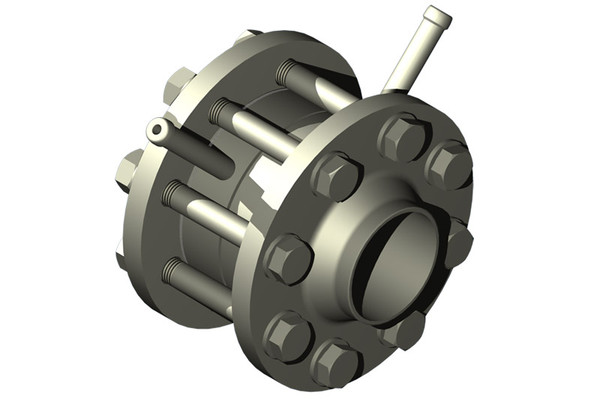

The Aplisens ZPK Flange-Type Nozzle Flowmeter is a differential pressure (DP) primary element designed for accurate flow measurement in closed pipelines. A precision nozzle generates a controlled pressure drop that is measured by a differential pressure transmitter and converted to flow in accordance with ISO 5167.
- Measurement principle: Differential pressure (DP) nozzle primary element
- Standards-based: Designed for ISO 5167 applications
- Built for industrial service: Suitable for high pressure and elevated temperature processes
- Custom engineered: Sized and manufactured to your pipeline and process conditions
For the most accurate sizing and configuration, we’ll confirm your process data and help you select the correct DP transmitter and connection style.
| Feature | Details |
|---|---|
| Model | Aplisens ZPK |
| Type | Flange-Type Nozzle Flowmeter (DP primary element) |
| Measurement Method | Differential pressure flow measurement (requires DP transmitter) |
| Typical Media | Liquids, gases, or steam (application dependent) |
| Installation | In-line between flanges; tapping / impulse connections per configuration |
| Compliance | ISO 5167 sizing methodology (application dependent) |
Final specifications depend on your DN size, pressure class, material selection, and process conditions. Contact us for a properly sized configuration.
ZPK pricing and lead time depend on configuration. To quote correctly, we typically confirm:
| What We Need | Examples |
|---|---|
| Pipe Size / Standard | DN size, flange standard, pressure class |
| Process Medium | Liquid / gas / steam, composition, viscosity (if applicable) |
| Operating Conditions | Flow range, line pressure, temperature |
| Material Selection | Body/flange materials, nozzle material (corrosion/temperature dependent) |
| Connections | Pressure tapping type, impulse line connection style |
| DP Transmitter | Customer supplied or we can recommend a matched DP transmitter |
Call 865-900-8844 or email KSmith@CPSCalibrations.com and we’ll confirm the configuration and send a formal quote.
