Product Overview
The Aplisens MS-100K Industrial Pressure Gauge is configured per application (range, process connection type, glycerine fill option, and special versions like back connection). For accurate pricing, please call 865-900-8844 or email KSmith@CPSCalibrations.com.

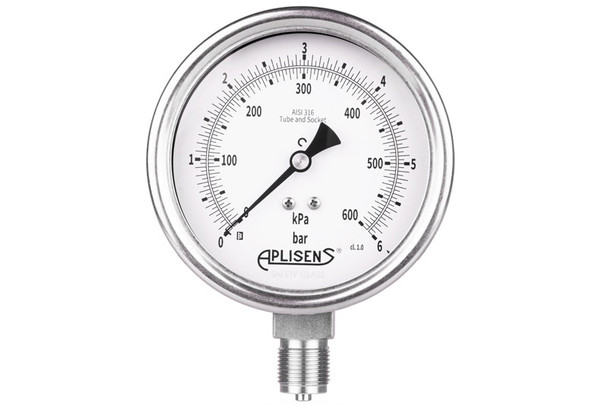

The Aplisens MS-100K is an industrial pressure gauge for measuring the pressure of liquids and gases at medium temperatures up to 200°C. It features a 100 mm stainless steel case with an industrial glass window. The measuring element and process connection are stainless steel (brass is used only for versions with diaphragm seals).
- Case diameter: 100 mm
- Accuracy class: 1%
- Materials: stainless steel case (304 SS), wetted parts/process connection (316Ti)
- Process connections: G1/2", M20×1.5, or 1/2" NPTM
- Mounting: bottom connection (standard); back connection (special version)
- Option: glycerine-filled case for pulsation/vibration service
- Protection: IP65
Tip: For best readability and service life, select a gauge range where normal operating pressure is within about 3/4 of the range for steady pressure or about 2/3 for pulsating pressure.
| Feature | Details |
|---|---|
| Model | MS-100K Industrial Pressure Gauge |
| Accuracy | 1% |
| Case Diameter | 100 mm |
| Standard Measurement Ranges | 0…1 / 1.6 / 2.5 / 4 / 6 / 10 / 16 / 25 / 40 / 60 / 100 / 160 / 250 / 400 bar -1…0 / 0.6 / 1.5 / 5 / 9 / 15 bar |
| Case Material | 304 stainless steel |
| Process Connection & Measuring Element Material | 316Ti |
| Process Connections | G1/2", M20×1.5, or 1/2" NPTM |
| Connection Outlet | Bottom (standard); Back (special version) |
| Operating Temperature (ambient) | Without filling: -40…90°C Glycerine-filled: -20…65°C |
| Medium Temperature | Without filling: up to 200°C Glycerine-filled: up to 90°C |
| Ingress Protection | IP65 |
MS-100K pricing depends on configuration. To quote correctly, we typically confirm:
| What We Need | Examples |
|---|---|
| Pressure Range | Select one of the standard ranges (example: 0–6 bar, 0–100 bar, 0–250 bar, etc.) |
| Filling Option | Dry (standard) or glycerine-filled for vibration/pulsation |
| Process Connection Type | G1/2", M20×1.5, or 1/2" NPTM |
| Connection Orientation | Bottom (standard) or back connection (special version) |
| Special Requirements | Material certificate, NACE compliance, or other site requirements |
Call 865-900-8844 or email KSmith@CPSCalibrations.com with your range, connection type, and whether you need glycerine fill, and we’ll send a formal quote.
Need help choosing range, connection type, or glycerine fill? Contact us and we’ll help match the right MS-100K configuration.
