Product Overview
The Aplisens PM-22 Intersystem Pressure Transducer is configured per application (pressure range, electrical connection style, and any special ordering requirements). For correct selection and accurate pricing, please call 865-900-8844 or email KSmith@CPSCalibrations.com.

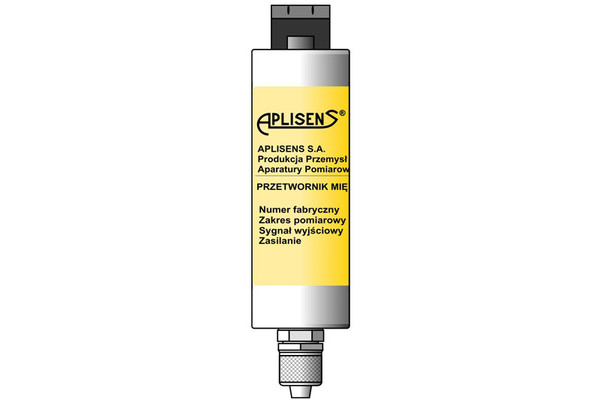

The Aplisens PM-22 is an intersystem pressure transducer used to convert a standard pressure signal into a 4–20 mA output signal. It can measure pressure, underpressure, and absolute pressure of gases, vapours, and liquids. The sensing element is a piezoresistive silicon sensor, and the standard input connection uses a tip clamp adapted for a flexible tube Ø 6 × 1. :contentReference[oaicite:0]{index=0}
- Standard input: 20…100 kPa (standard version) :contentReference[oaicite:1]{index=1}
- Output: 4…20 mA :contentReference[oaicite:2]{index=2}
- Accuracy: 0.16% :contentReference[oaicite:3]{index=3}
- Enclosure: IP65 or IP67 (depends on electrical connection) :contentReference[oaicite:4]{index=4}
- Zero/span adjust: Potentiometers allow ±10% adjustment without changing settings :contentReference[oaicite:5]{index=5}
- Electrical connection: standard plug clamp or optional DIN 43650 connector :contentReference[oaicite:6]{index=6}
Tell us your required converting pressure range (1 kPa to 200 kPa) and which electrical connection you prefer, and we’ll confirm the correct PM-22 configuration. :contentReference[oaicite:7]{index=7}
| Feature | Details |
|---|---|
| Model | Aplisens PM-22 :contentReference[oaicite:8]{index=8} |
| Input signal (standard) | 20…100 kPa :contentReference[oaicite:9]{index=9} |
| Output signal | 4…20 mA :contentReference[oaicite:10]{index=10} |
| Accuracy | 0.16% :contentReference[oaicite:11]{index=11} |
| Hysteresis / repeatability | 0.05% :contentReference[oaicite:12]{index=12} |
| Thermal error | 0.2% / 10°C :contentReference[oaicite:13]{index=13} |
| Temperature compensation range | 0…50°C :contentReference[oaicite:14]{index=14} |
| Power supply | 10.5…36 V DC :contentReference[oaicite:15]{index=15} |
| Protection class | IP65 or IP67 (depending on electrical connection) :contentReference[oaicite:16]{index=16} |
| Sensing element | Piezoresistive silicon sensor :contentReference[oaicite:17]{index=17} |
| Process connection (standard) | Tip clamp for flexible tube Ø 6 × 1 :contentReference[oaicite:18]{index=18} |
Load resistance is limited by supply voltage; contact us if you need help confirming loop resistance for your installation. :contentReference[oaicite:19]{index=19}
PM-22 pricing depends on configuration. To quote correctly, we typically confirm:
| What We Need | Examples |
|---|---|
| Converting pressure range | From 1 kPa up to 200 kPa (per ordering procedure) :contentReference[oaicite:20]{index=20} |
| Standard vs special version | Standard: Input 20…100 kPa / Output 4…20 mA OR Special version with defined range :contentReference[oaicite:21]{index=21} |
| Electrical connection | Standard plug clamp or /PD (DIN 43650 connector) :contentReference[oaicite:22]{index=22} |
| Installation details | Flexible tube size (Ø 6 × 1), mounting orientation, and any loop-power constraints |
Call 865-900-8844 or email KSmith@CPSCalibrations.com and we’ll confirm the correct PM-22 configuration and send a formal quote.
If you need help selecting the correct converting pressure range or DIN 43650 connector option, contact us and we’ll assist.
