Product Overview
The Aplisens ZS-30 Power Supply & Isolator is used for two-wire 4–20 mA transmitters and supports a universal supply of 20–253 V AC/DC. For accurate selection and pricing, please call 865-900-8844 or email KSmith@CPSCalibrations.com.

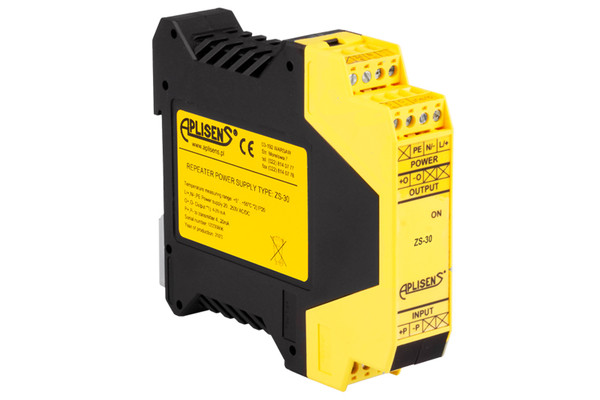

The Aplisens ZS-30 is a power supply and signal isolator designed to power two-wire transmitters with a 4–20 mA output and to transform the signal through full galvanic separation into standard control signals. Circuits IN, OUT, and SUPPLY are galvanically separated.
- Universal power supply: 20–253 V AC/DC
- Full galvanic separation: IN–OUT, IN–SUPPLY, OUT–SUPPLY
- Digital calibration of the measurement chain IN–OUT
- Accuracy: 0.1%
- Standard output: 4–20 mA (other outputs available)
Need a special output type (0–10V, 1–5V, 0–20mA, etc.)? We can help confirm the correct ZS-30 configuration.
| Feature | Details |
|---|---|
| Model | ZS-30 Power Supply & Isolator |
| Power Supply | 20–253 V AC/DC |
| Supply Voltage to Transmitter (UIN) | 22.5 V |
| Input Signal (IIN) | 4–20 mA |
| Output Signal Options | 4–20 mA (standard), 0–20 mA, 0–5 mA, 0–5 V, 1–5 V, 0–10 V, 2–10 V |
| Load Resistance (RO) | 4–20 mA / 0–20 mA: 0–500 Ω 0–5 mA: 0–2 kΩ Voltage outputs: ≥ 10 kΩ |
| Test Voltage Between Circuits | 1.5 kV AC, 50 Hz |
| Power Consumption | ≤ 2 W |
| Supply Current (Starting) | Max 0.6 A (for USUP = 20 V DC) |
| Accuracy | ≤ 0.1% |
| Effect of Load Resistance Fluctuations | ≤ ±0.05% |
| Effect of Temperature Fluctuations | ≤ ±0.01% / °C |
| Ambient Temperature | 5…55 °C |
| Ingress Protection | IP20 |
| Weight | < 0.15 kg |
ZS-30 provides galvanic isolation between IN/OUT/SUPPLY circuits for improved noise immunity and safety.
ZS-30 pricing depends on the output configuration. To quote correctly, we typically confirm:
| What We Need | Examples |
|---|---|
| Output Type | Standard 4–20 mA or special output: 0–10V, 1–5V, 0–20mA, 0–5mA |
| Receiving Load (RO) | Confirm the input/load resistance of your PLC/DAQ/controller to match the selected output |
| Power Available | Confirm available supply: 20–253 V AC/DC |
Ordering: ZS-30 = standard (Iout = 4–20 mA). Special version format: ZS-30/___ (specify output type). Call 865-900-8844 or email KSmith@CPSCalibrations.com.
Need help choosing the correct output signal for your PLC or controller? Reach out and we’ll help.
