Product Overview

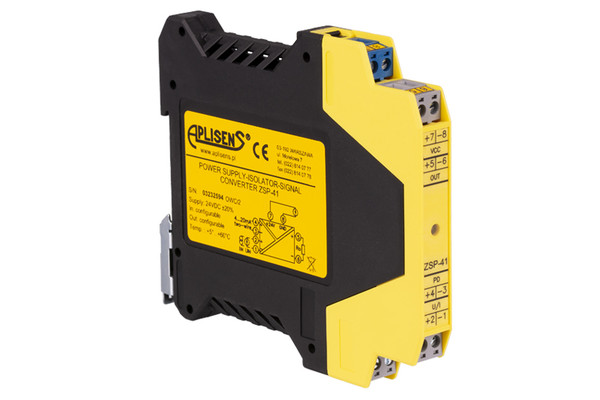

The Aplisens ZSP-41/1 & ZSP-41/2 is a power supply / isolator / signal converter with full galvanic separation and selectable input/output signals (0–20 mA, 4–20 mA, 0–10 V). For accurate selection and pricing, please call 865-900-8844 or email KSmith@CPSCalibrations.com.
The Aplisens ZSP-41 is a power supply / isolator / signal converter that provides galvanic separation between measurement circuits and the main control section. It separates an input signal (4–20 mA, 0–20 mA, or 0–10 V) and converts it into a selectable output signal. An additional input line can power a two-wire transmitter with 19–24 V.
- Full galvanic separation: IN–OUT, IN–SUP, OUT–SUP
- Selectable I/O signals: 0–20 mA, 4–20 mA, 0–10 V
- Transmitter power option: additional input line can power two-wire transmitter (19–24 V)
- DIN rail mounting: TS35
ZSP-41 is typically configured for 4–20 mA / 4–20 mA. Other ranges are selectable via internal switches.
| Feature | Details |
|---|---|
| Models | ZSP-41/1 and ZSP-41/2 |
| Input Signal (switch selectable) | 0–20 mA, 4–20 mA, 0–10 V |
| Input Resistance | 50 kΩ (voltage input) / ≥ 50 Ω (current input) |
| Output Signal (switch selectable) | 0–20 mA, 4–20 mA, 0–10 V |
| Load Resistance | 0–500 Ω (current output) / ≥ 1 kΩ (voltage output) |
| Galvanic Separation | Opto-electronic |
| Strength Test | 1.5 kV AC, 50 Hz, 1 min |
| Transmission Band | 5 Hz (3 dB) |
| Supply Voltage | 24 V ± 20% |
| Supply Current | ≤ 100 mA |
| Ambient Temperature | 5…60 °C |
| Relative Humidity | 30…80% |
| Casing | UEGM 22.5 (PHOENIX) |
| Ingress Protection | IP20 |
| Weight | 0.1 kg |
| Accuracy | ≤ ±0.16% (typical) |
Note: Setting a different range can lower converter class to 0.25% (tuning possible using front-access trimmers).
ZSP-41 pricing depends on model and I/O configuration. To quote correctly, we typically confirm:
| What We Need | Examples |
|---|---|
| Model | ZSP-41/1 (includes two-wire transmitter supply option) or ZSP-41/2 |
| Input Signal | 0–20 mA, 4–20 mA, or 0–10 V |
| Output Signal | 0–20 mA, 4–20 mA, or 0–10 V |
| Power Supply | 24 VDC (±20%) available in your panel |
Ordering format:
Standard: ZSP-41/1 or ZSP-41/2
Special: ZSP-41/1 /___/___ or ZSP-41/2 /___/___ (input / output selection).
Call 865-900-8844 or email KSmith@CPSCalibrations.com.
Need help selecting the correct I/O configuration or wiring it into your PLC? Reach out and we’ll help.
