Product Overview
The Aplisens ZL-25-01 Power Supply is available in a standard 2×24 VDC output version and special versions (5–30 VDC). For accurate selection and pricing, please call 865-900-8844 or email KSmith@CPSCalibrations.com.

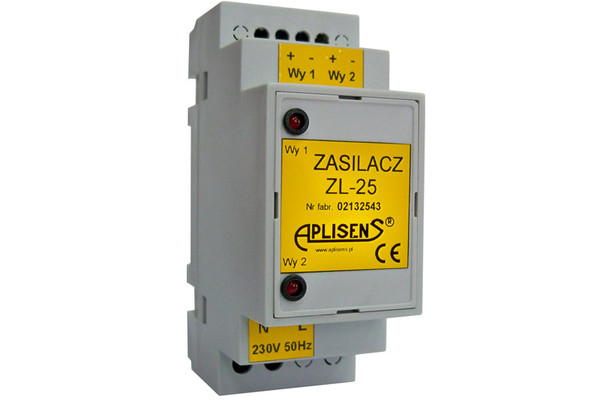

The Aplisens ZL-25-01 is a compact DIN-rail power supply designed to convert 230 VAC (50 Hz) into a stable DC supply. It provides two outputs of 24 VDC (2×50 mA) and includes output voltage presence indication. The unit is designed to be permanently resistant to short circuits and excess voltage and mounts on standard rails TS35 / TS32. :contentReference[oaicite:0]{index=0}
- Outputs: 2×24 V DC :contentReference[oaicite:1]{index=1}
- Max output current: 2×50 mA (parallel channels to increase current) :contentReference[oaicite:2]{index=2}
- Input: 230 V AC, 50 Hz (±10%) :contentReference[oaicite:3]{index=3}
- Protection: permanently resistant to short circuits & excess voltage :contentReference[oaicite:4]{index=4}
- Mounting: DIN rail TS35 / TS32 :contentReference[oaicite:5]{index=5}
Need a special output voltage (5–30 VDC)? We can help confirm the correct ZL-25-01 configuration and quote it.
| Feature | Details |
|---|---|
| Model | ZL-25-01 Power Supply :contentReference[oaicite:6]{index=6} |
| Input Voltage | 230 V AC, 50 Hz (±10%) :contentReference[oaicite:7]{index=7} |
| Output Voltage | 2×24 VDC ±1.2 VDC (special versions: 5–30 V) :contentReference[oaicite:8]{index=8} |
| Maximum Load Current | 2×50 mA :contentReference[oaicite:9]{index=9} |
| Galvanic Separation | Network transformer :contentReference[oaicite:10]{index=10} |
| Strength Test | 1.5 kVAC, 50 Hz, 1 min :contentReference[oaicite:11]{index=11} |
| Ambient Temperature | 5…60°C :contentReference[oaicite:12]{index=12} |
| Ingress Protection | IP20 :contentReference[oaicite:13]{index=13} |
| Weight | 0.4 kg :contentReference[oaicite:14]{index=14} |
Tip: To increase output current, both output channels can be connected in parallel. :contentReference[oaicite:15]{index=15}
ZL-25-01 pricing depends on configuration. To quote correctly, we typically confirm:
| What We Need | Examples |
|---|---|
| Output Voltage | Standard 2×24 VDC or special 5–30 VDC output (specify voltage) :contentReference[oaicite:16]{index=16} |
| Load Requirements | Current needed per channel; whether channels will be used separately or paralleled :contentReference[oaicite:17]{index=17} |
| Mounting | DIN rail TS35 / TS32 mounting in control panel :contentReference[oaicite:18]{index=18} |
Call 865-900-8844 or email KSmith@CPSCalibrations.com with your required DC voltage and load and we’ll send a formal quote.
Need help confirming wiring or parallel output use? Reach out and we’ll help.
