Product Overview
The Aplisens MS-100 Pressure Gauge with Diaphragm Seal is configured per application (pressure range, diaphragm seal type/size, glycerine fill option, and special versions like back connection). For correct selection and accurate pricing, please call 865-900-8844 or email KSmith@CPSCalibrations.com.

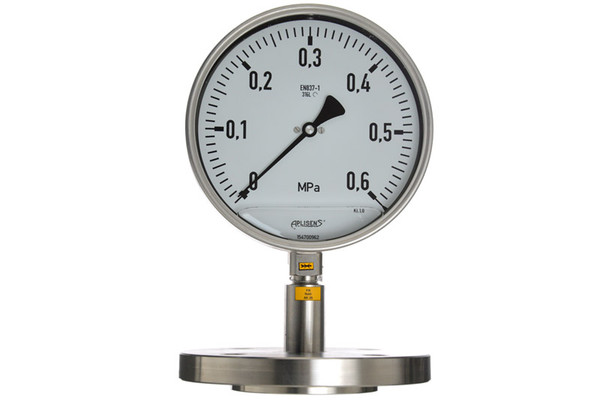

The Aplisens MS-100 is a Bourdon tube pressure gauge intended for use with a diaphragm seal to improve reliability in challenging industrial applications. Diaphragm seals are commonly used when the process media is contaminated, viscous, solidifying, chemically reactive, or at high/low temperature, and in installations with mechanical vibration or pulsating pressure. :contentReference[oaicite:0]{index=0}
- Case diameter: 100 mm :contentReference[oaicite:1]{index=1}
- Accuracy class: 1% :contentReference[oaicite:2]{index=2}
- Materials: stainless steel case; stainless steel process connection & measuring element :contentReference[oaicite:3]{index=3}
- Use with diaphragm seals: for harsh media/temperature and demanding service conditions :contentReference[oaicite:4]{index=4}
- Options: glycerine-filled case; back connection special version :contentReference[oaicite:5]{index=5}
Tell us your pressure range, process media, temperature, and the diaphragm seal style/size (e.g., DN50 PN40) and we’ll help select the correct configuration and quote it.
| Feature | Details |
|---|---|
| Model | Aplisens MS-100 Pressure Gauge with Diaphragm Seal :contentReference[oaicite:6]{index=6} |
| Case Diameter | 100 mm :contentReference[oaicite:7]{index=7} |
| Accuracy | 1% :contentReference[oaicite:8]{index=8} |
| Standard Measurement Ranges | 0…1 / 1.6 / 2.5 / 4 / 6 / 10 / 16 / 25 / 40 / 60 / 100 / 160 / 250 / 400 bar -1…0 / 0.6 / 1.5 / 5 / 9 / 15 bar :contentReference[oaicite:9]{index=9} |
| Case Material | 0H18N9 (304 stainless steel) :contentReference[oaicite:10]{index=10} |
| Process Connection & Measuring Element Material | H17N13M2T (316Ti) :contentReference[oaicite:11]{index=11} |
| Process Connection | Diaphragm seal (selected per diaphragm seal datasheet) :contentReference[oaicite:12]{index=12} |
| Connection Outlet | Bottom (standard); Back (special version) :contentReference[oaicite:13]{index=13} |
| Special Versions | Glycerine-filled case; Back connection “T” option :contentReference[oaicite:14]{index=14} |
The allowable medium temperature depends on the selected diaphragm seal and may be from -60 to +315°C. :contentReference[oaicite:15]{index=15}
MS-100 pricing depends on configuration. To quote correctly, we typically confirm:
| What We Need | Examples |
|---|---|
| Pressure Range | Example: 0…6 bar, 0…25 bar, 0…100 bar, etc. :contentReference[oaicite:16]{index=16} |
| Special Version | Glycerine-filled case (for vibration/pulsation) and/or back connection “T” option :contentReference[oaicite:17]{index=17} |
| Diaphragm Seal Type | Selected per diaphragm seal datasheets (example shown: S-P-DN50PN40) :contentReference[oaicite:18]{index=18} |
| Requirements | Material certificate, NACE MR-01-75 compliance :contentReference[oaicite:19]{index=19} |
Call 865-900-8844 or email KSmith@CPSCalibrations.com and we’ll confirm the correct gauge + diaphragm seal configuration and provide a formal quote.
Need help selecting the correct diaphragm seal for your media and temperature? Contact us and we’ll help match the right seal and gauge configuration.
