Product Overview

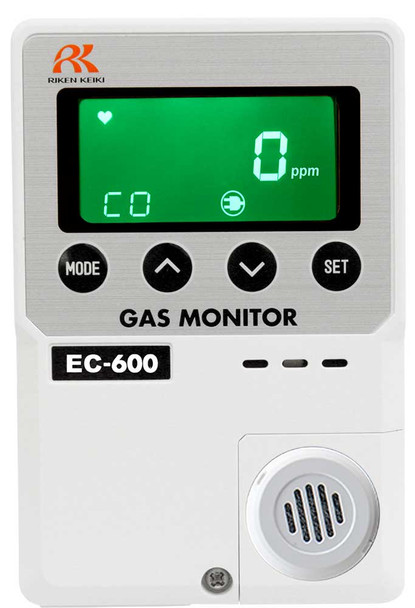

RKI’s Model EC-600 is an indoor monitor that detects Carbon Monoxide (CO) with a range of 0-150 ppm. It’s a sleek low-profile design which lends itself to laboratory or commercial applications. The EC-600 comes ready to operate with a simple wall mount bracket and 10-foot power cord. If Carbon Monoxide is present, the user is notified by an audible alarm tone and multicolored LED display.
The EC-600 uses a fast-responding low-cost plug-in style electrochemical sensor. This long-life sensor is field-replaceable with no special tools required.
Related Services
- Design, Consultations, and Engineering
- Installation
- Start-up
- Training
- System Maintenance
Please contact CPS Calibrations at 865-900-8844 or SFarmer@cpscalibrations.com for more information.
Model EC-600 Specifications
| CO (ppm) | Human Reaction and Poisoning |
|---|---|
| 100 | No noticeable effect after breathing in for a few hours. |
| 200 | Slight headache is felt after breathing for about 1.5 hours. |
| 400-500 | A headache, nausea, and dizziness are caused after breathing around 1 hour. |
| 500-1,000 | Loss of consciousness after breathing for about 1 to 1.5 hours. |
| 1,500-2,000 | Severe headache, dizziness, and nausea after breathing for 30 minutes to 1 hour. |
| 10,000 | Immediate death. |
Additional Specifications
| Category | Details |
|---|---|
| Measuring Gas | Carbon monoxide (CO) |
| Sampling Method | Diffusion |
| Dimensions | 95(W) x 135(H) x 35(D)mm |
| Weight | Approx. 420g (Approx. 220g in case of DC 24V version) |
| Display | 3 digits, 3 color LED (Green, Orange, Red) |
| Operating Temperature | 0-40ºC (0 to 104ºF) |
| Alarm Levels | 1st: 50 ppm, 2nd: 100 ppm |
| Power | AC 115V 50/60Hz or optional DC 24V |
| Warranty | One year materials and workmanship |
Warranty Information
Warranty One year materials and workmanship.
