Product Overview

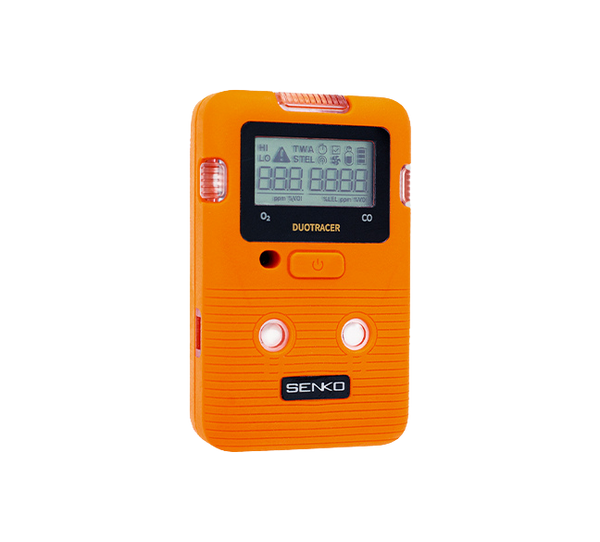

The DUO TRACER is a portable dual gas detector that simultaneously detects two gases, offering real-time display and a multi-alert system. It is designed for detecting oxygen, explosive, or toxic gases.
- Dual Gas Detection: Simultaneously detects two gases for comprehensive monitoring.
- Wireless and IR Connectivity: Easy connection and configuration.
- Real-time Monitoring: Continuous gas concentration readings.
- IP67 Rating: Water and dustproof for rugged environments.
- Compact and Lightweight: Portable design for easy handling.
- High-performance Alarms: Visual, audible, and vibration alerts.
- Event Log: Automatically logs up to 30 alarm events.
- IR Link Configuration: Easy data management and setup.
- User-friendly Operation: Simple interface for ease of use.
- Multi-docking Station: Simultaneous bump test and calibration.
- Explosion-proof Certification: Complies with global explosion-proof standards.
| Feature | Details |
|---|---|
| Model | DUO TRACER |
| Sensor Type | Electrochemical, NDIR (Non-Dispersive Infrared) |
| Measuring Type | Diffusion Type |
| Case Material | Rubber-type polycarbonate |
| Dimensions | 56(W) x 89(H) x 21(D) mm 2.2 x 3.5 x 0.83 inches |
| Weight | 200g / 7.05 oz |
| Operating Temperature | -20℃ to +50℃ (-4℉ to +122℉) |
| Operating Humidity | 15% to 90% RH (non-condensing) |
| IP Rating | IP67 (Water and dust resistant) |
| Alarm Types | Visual (LCD + LEDs), Audible (buzzer), Vibration |
| Display | LCD (Liquid Crystal Display) |
| Button | One-button operation |
| Battery Type | 3.6V Li-SOClâ‚‚ replaceable cell (Vitzrocell) |
| Battery Life | Models 1–2: ~3 months Models 3–9, A–F: ~2 years (Based on 8 hr/day use with wireless off) |
| Event Log | Stores last 30 alarms |
| Environmental Ratings | Pollution Degree: 2 Atmospheric Pressure: 80–120 KPa |
| Attachment Method | Clip for belt, clothing, or helmet |
| Warranty | 2 years from date of purchase |
| Included Accessories | Calibration cap (optional) |
| Certifications | ATEX, IECEx, CSA, UL, CNEx, KCs RoHS2, EMC, REACH, WEEE |
