Product Overview

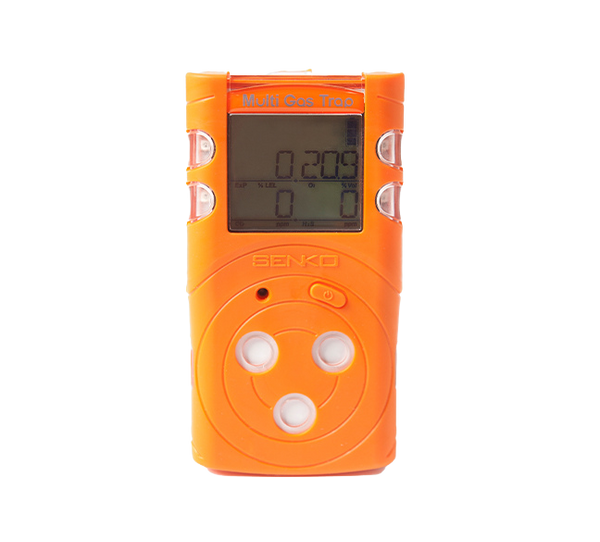

The SENKO SP-MGT is a compact, diffusion-type multi-gas detector designed for industrial safety applications. It continuously monitors concentrations of oxygen (O₂), carbon monoxide (CO), hydrogen sulfide (H₂S), and methane (CH₄), providing real-time alerts through LED indicators, audible alarms, and vibration.
Equipped with a dual sensor for CO and H₂S, the SP-MGT ensures precise and reliable detection in high-risk environments. Its lightweight design and rechargeable battery make it ideal for use in various industrial settings, offering extended operation times to meet demanding safety requirements.
- Simultaneous detection of O₂, CO, H₂S, and CH₄ gases
- Diffusion-type measurement for accurate and reliable gas detection
- Compact and lightweight design for portability
- Rechargeable battery with extended operation time
- Event logging for up to 30 bump tests, events, and calibrations
- High-performance audible and vibrating alarms for hazardous conditions
- Easy configuration and data management via IR Link
- Quick check and calibration features
| Feature | Details |
|---|---|
| Model | SP-MGT |
| Sensor Type | O₂, CO, H₂S: Electrochemical CH₄: IR or Pellistor |
| Measurement Type | Diffusion Type |
| Display | LCD with Backlight |
| Weight | 240g / 8.47 oz |
| Dimensions | 61(W) x 114(H) x 43(D) mm 2.4 x 4.49 x 1.69 inches |
| Operating Temperature | O₂: -20℃ to +50℃ (-4℉ to +122℉) CH₄: -20℃ to +60℃ (-4℉ to +140℉) CO/H₂S: -30℃ to +50℃ (-22℉ to +122℉) |
| Operating Humidity | 5% to 95% RH (non-condensing) |
| Ingress Protection | IP67 |
| Battery Type | Rechargeable Li-ion (2,000 mAh) |
| Battery Life | IR type: up to 60 days Pellistor type: up to 25 hours |
| Charging Time | 4–6 hours |
| Alarm Types | Visual (LED), Vibrating, Audible (90 dB at 10cm) |
| Self-Test | Full function self-test on activation; continuous sensor, battery, and circuit monitoring |
| Data Logs | Event Log: 30 Calibration Log: 30 Bump Log: 30 Data Log: 2+ months |
| Low Battery Warnings | 20, 10, and 5-minute pre-shutdown warnings |
| Certifications | ATEX, IECEx, CSA, UL, INMETRO, PESO RoHS2, EMC, RCM, REACH, WEEE, FCC |
| Warranty | 2 years |
| Included Components | Calibration cap, USB-C charge cable, power adaptor |
