Product Overview

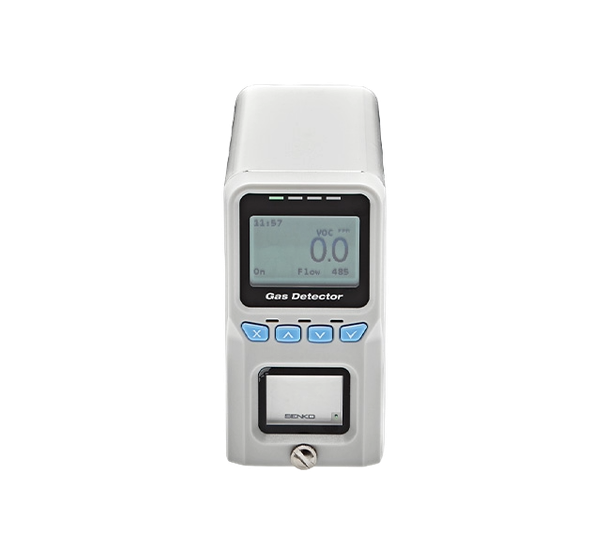

Senko SI-H100
The SI-H100 is a compact, highly reliable sampling gas detector developed by SENKO. Designed for industrial environments, it draws in gas samples through an internal pump and measures them with precision sensors. With an intuitive LCD display, powerful alarms, and versatile connectivity options, the SI-H100 ensures safety monitoring across a variety of applications.
Its design allows easy maintenance, efficient sampling up to 30 meters, and stable operation with low power consumption. The SI-H100 supports multiple output methods, including analog, relay, and digital communication (RS-485, Ethernet), making it suitable for integration into different safety management systems.
| Model | SI-H100 |
|---|---|
| Dimensions | 123(H) x 65(W) x 155(D) mm |
| Weight | 2kg |
| Operating Voltage | DC: 24V ±10% PoE: 36V~57V (Typical: 48V) |
| Flow Rate | 500mL/min (MAX 900) |
| Power Consumption | Approximately 5.0W |
| Display | Graphic LCD (160x100), Gas concentration, unit, sensor status, Rear light, Device abnormality |
| Alarm | 90dB at 10cm |
| Relay | 1st stage, 2nd stage alarm, Device malfunction |
| Analog Output | Analog, 4–20mA |
| Digital Communication | RS-485, TCP Ethernet |
| Sampling Distance | To sampling point: Max 30m (FEP tube) To exhaust point: Max 30m (FEP tube) |
| Tubing Standard | 1/4" Teflon tube |
| Operating Temperature | 0°C ~ 40°C |
| Certification | CE |
| Input Settings | 4 Button & RS485 & Ethernet |
| Device Warranty | 2 years |
| Sensor Warranty | 1 year |
| External Interface | Ethernet, RS-485 |
| Wiring | 4–20mA / DC Power / Relay: Cable 14 AWG |
| ETC | Firmware updates available via Senko website |
| Gas | Sensor | Range | Alarm 1 | Alarm 2 | Resolution |
|---|---|---|---|---|---|
| ASH3 | Electrochemical | 0~400 ppb | 25 ppb | 50 ppb | 0.1 ppb |
| B2H6 | Electrochemical | 0~400 ppb | 50 ppb | 100 ppb | 0.1 ppb |
| BCL3 | Electrochemical | 0~10 ppm | 1 ppm | 2 ppm | 0.1 ppm |
| C8H22N2Si | Electrochemical | 0~6 ppm | 1 ppm | 2 ppm | 0.01 ppm |
| BF3 | Electrochemical | 0~8 ppm | 0.5 ppm | 1 ppm | 0.01 ppm |
| BTBAS | Electrochemical | 0~50 ppm | 12.5 ppm | 50 ppm | 0.1 ppm |
| C2H2 | Catalytic | 0~100 %LEL | 12.5 %LEL | 25 %LEL | 1 %LEL |
| C2H4 | Catalytic | 0~100 %LEL | 12.5 %LEL | 25 %LEL | 1 %LEL |
| C2H6 | Catalytic | 0~100 %LEL | 12.5 %LEL | 25 %LEL | 1 %LEL |
| C4F6 | Electrochemical | 0~400 ppm | 130 ppm | 260 ppm | 0.1 ppm |
| C5F8 | Electrochemical | 0~40 ppm | 5 ppm | 10 ppm | 0.1 ppm |
| C6H12 | Catalytic | 0~100 %LEL | 12.5 %LEL | 25 %LEL | 1 %LEL |
| C8H18 | Catalytic | 0~100 %LEL | 12.5 %LEL | 25 %LEL | 1 %LEL |
| CH2F2 | IR | 0~5000 ppm | 1000 ppm | 2000 ppm | 1 ppm |
| CH3F | Electrochemical | 0~5000 ppm | 1000 ppm | 2000 ppm | 1 ppm |
| CH3OH | Catalytic | 0~100 %LEL | 12.5 %LEL | 25 %LEL | %LEL |
| CH4 | Catalytic | 0~100 %LEL | 12.5 %LEL | 25 %LEL | 1 %LEL |
| CH4 | IR | 0~100 %LEL | 12.5 %LEL | 25 %LEL | 1 %LEL |
| CL2 | Electrochemical | 0~3 ppm | 0.25 ppm | 0.5 ppm | 0.01 ppm |
| CIF3 | Electrochemical | 0~1 ppm | 0.05 ppm | 0.1 ppm | 0.01 ppm |
| CO | Electrochemical | 0~100 ppm | 15 ppm | 30 ppm | 0.1 ppm |
| COS | Electrochemical | 0~100 ppm | 14 ppm | 28 ppm | 0.1 ppm |
| DCE | Electrochemical | 0~400 ppm | 100 ppm | 200 ppm | 0.1 ppm |
| DCS | Electrochemical | 0~10 ppm | 2.5 ppm | 5 ppm | 0.1 ppm |
| F2 | Electrochemical | 0~3 ppm | 0.25 ppm | 0.5 ppm | 0.01 ppm |
| GEF4 | Electrochemical | 0~8 ppm | 1 ppm | 2 ppm | 0.01 ppm |
| GEH4 | Electrochemical | 0~800 ppb | 100 ppb | 200 ppb | 0.1 ppb |
| H2 (PPM) | Electrochemical | 0~1000 ppm | 250 ppm | 500 ppm | 1 ppm |
| H2 (%LEL) | Catalytic | 0~100 %LEL | 12.5 %LEL | 25 %LEL | 1 %LEL |
| HBr | Electrochemical | 0~6 ppm | 1 ppm | 2 ppm | 0.01 ppm |
| HCDS / Si2Cl6 | Electrochemical | 0~10 ppm | 2 ppm | 4 ppm | 0.1 ppm |
| HCL | Electrochemical | 0~6 ppm | 1 ppm | 2 ppm | 0.01 ppm |
| HF | Electrochemical | 0~6 ppm | 1 ppm | 2 ppm | 0.01 ppm |
| HMDS / H6H19NSi2 | Electrochemical | 0~400 ppm | 130 ppm | 260 ppm | 0.1 ppm |
| NABAL | Electrochemical | 0~50 ppm | 5 ppm | 10 ppm | 0.1 ppm |
| NF3 | Electrochemical | 0~40 ppm | 10 ppm | 20 ppm | 0.1 ppm |
| NH3 | Electrochemical | 0~100 ppm | 12.5 ppm | 25 ppm | 0.1 ppm |
| NO | Electrochemical | 0~50 ppm | 12.5 ppm | 25 ppm | 0.1 ppm |
| O3 | Electrochemical | 0~400 ppb | 50 ppb | 100 ppb | 0.1 ppb |
| PCp-ZR / (nPrCp)Zr | Electrochemical | 0~20 ppm | 5 ppm | 10 ppm | 0.1 ppm |
| PH3 | Electrochemical | 0~1.2 ppm | 0.15 ppm | 0.3 ppm | 0.01 ppm |
| C5H5N | Electrochemical | 0~10 ppm | 1 ppm | 2 ppm | 0.1 ppm |
| RENA, TEA / C6H15N | Electrochemical | 0~10 ppm | 2.5 ppm | 5 ppm | 0.1 ppm |
| SiCl4 | Electrochemical | 0~10 ppm | 2.5 ppm | 5 ppm | 0.1 ppm |
| SiH4 | Electrochemical | 0~15 ppm | 2.5 ppm | 5 ppm | 0.1 ppm |
| DIPAS (LTO520) | Electrochemical | 0~20 ppm | 5 ppm | 10 ppm | 0.1 ppm |
| HCN | Electrochemical | 0~20 ppm | 10 ppm | 15 ppm | 0.1 ppm |
| 3DMAS (TDMAS) | Electrochemical | 0~10 ppm | 2.5 ppm | 5 ppm | 0.1 ppm |
| TDMAT / C8H24N4Ti | Electrochemical | 0~20 ppm | 5 ppm | 10 ppm | 0.1 ppm |
| TEB / (CH3CH2)3B | Electrochemical | 0~50 ppm | 10 ppm | 20 ppm | 0.1 ppm |
| TEOS / SiC8H20O4 | Electrochemical | 0~30 ppm | 5 ppm | 10 ppm | 0.1 ppm |
| Thalassa | Electrochemical | 0~20 ppm | 5 ppm | 10 ppm | 0.1 ppm |
| TiCl4 | Electrochemical | 0~15 ppm | 1.3 ppm | 2.6 ppm | 0.1 ppm |
| TMA (AL(CH3)3) | Electrochemical | 0~20 ppm | 5 ppm | 10 ppm | 0.1 ppm |
| TMB / C3H9BO3 | Electrochemical | 0~20 ppm | 5 ppm | 10 ppm | 0.1 ppm |
| TMS / C3H10OSi | Electrochemical | 0~30 ppm | 5 ppm | 10 ppm | 0.1 ppm |
| WF6 | Electrochemical | 0~6 ppm | 1 ppm | 2 ppm | 0.01 ppm |
| 4MS (Precursor) | Electrochemical | 0~20 ppm | 5 ppm | 10 ppm | 0.1 ppm |
| O2 | Electrochemical | 0~30 %Vol | 19 %Vol | 23 %Vol | 0.1 %Vol |
| H2S | Electrochemical | 0~100 ppm | 25 ppm | 50 ppm | 0.1 ppm |
| SO2 | Electrochemical | 0~8 ppm | 2 ppm | 4 ppm | 0.01 ppm |
| NO2 | Electrochemical | 0~20 ppm | ppm | ppm | 0.1 ppm |
| C3H8 | Catalytic | 0~100 %LEL | 25 %LEL | 50 %LEL | 1 %LEL |
| C3H8 | IR | 0~100 %LEL | 25 %LEL | 50 %LEL | 1 %LEL |
| CO2 | IR | 0~5000 ppm | 800 ppm | 1000 ppm | 1 ppm |
| IPA | Catalytic | 0~100 %LEL | 25 %LEL | 50 %LEL | 1 %LEL |
| C4H8 | Catalytic | 0~100 %LEL | 25 %LEL | 50 %LEL | 1 %LEL |
| D2 | Catalytic | 0~100 %LEL | 25 %LEL | 50 %LEL | 1 %LEL |
| SF6 | NDIR | 0~1000 ppm | 200 ppm | 400 ppm | 1 ppm |
| CF4 | NDIR | 0~2000 ppm | 500 ppm | 1000 ppm | 1 ppm |
| COS | NDIR | 0~50 ppm | 5 ppm | 10 ppm | 0.1 ppm |
| TEOS | NDIR | 0~50 ppm | 5 ppm | 10 ppm | 0.1 ppm |
| CH3F | NDIR | 0~5000 ppm | 1000 ppm | 2000 ppm | 1 ppm |
| NF3 | NDIR | 0~50 ppm | 10 ppm | 20 ppm | 0.1 ppm |
| H2O2 | Electrochemical | 0~20 ppm | 5 ppm | 10 ppm | 0.1 ppm |
| HCHO | Electrochemical | 0~5 ppm | 0.6 ppm | 1 ppm | 0.1 ppm |
| CpHf / C11H23N3Hf | Electrochemical | ||||
| CP-ZR (ZAC) | Electrochemical | ||||
| VOC | PID | 0~2000 ppm | |||
| N2O | IR | 0~1000 ppm |
