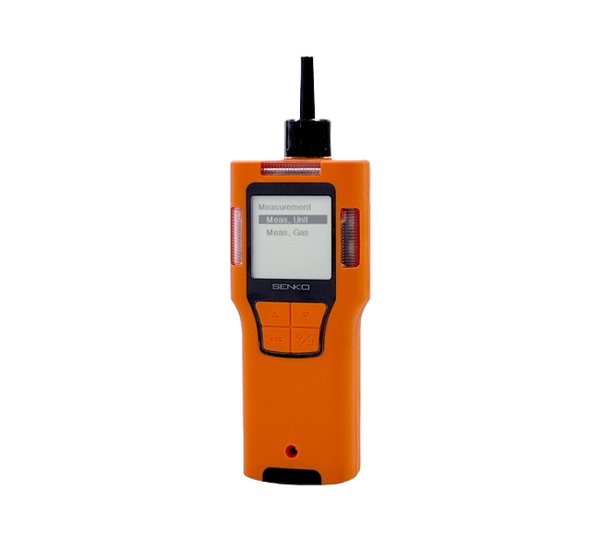

Product Overview
The V Pro is a handheld VOC detector specifically designed for accurate detection of volatile organic compounds in industrial and hazardous environments. With diffusion sampling, a robust polycarbonate housing, and a high-resolution LCD display, it offers reliable, long-term monitoring with visual, audible, and vibration alerts.
- VOC Detection: Detects a wide range of VOC gases.
- Diffusion Sampling: Ensures precise and reliable measurements.
- Robust Construction: Polycarbonate with rubberized exterior for durability.
- Portable and User-Friendly: Lightweight with 4 operational keys and backlit LCD display.
- Alarm System: Visual, audible, and vibration alerts for safety.
- Data Management: Stores events and calibration logs, downloadable via IR Link or wireless.
- Long Battery Life: Rechargeable lithium-ion battery up to 60 hours of continuous use.
| Feature | Details |
|---|---|
| Model | V Pro |
| Measuring Target | VOCs – Specifically designed for detecting a wide range of VOC gases in industrial and hazardous environments. |
| Sampling Type | Diffusion sampling |
| Housing Material | Robust polycarbonate construction with a rubberized exterior |
| Dimensions | 70(W) x 215(H) x 43(D) mm / 2.76(W) x 8.46(H) x 1.69(D) inch |
| Weight | 360g / 12.70 oz |
| Power Supply | 3.7VDC Lithium-ion rechargeable battery (4000mAh) |
| Battery Life | Up to 60 hours continuous operation |
| Operating Temperature Range | -20°C to +50°C / -4°F to +122°F |
| Operating Humidity | 10% to 90% RH (non-condensing) |
| Pressure Range | 80 KPa to 120 KPa |
| Event Log | Stores up to 30 most recent alarm events |
| Ingress Protection | IP67 – Fully dustproof and waterproof (up to 1m for 30 mins) |
| Alarm Mechanisms | Visual: LCD with gas readings and LED indicators Audible: High-decibel buzzer Vibration: Integrated vibration alert |
| Display | High-resolution LCD with real-time gas concentration, alarms, and diagnostics |
| Control Interface | Four operational and programming keys |
| Calibration | Zero Calibration using activated carbon filter, Span Calibration using standard calibration gas |
| Data Logging | Stores logs for data, events, calibration, and bump tests. Downloadable via SENKO IR LINK or wireless |
| Components | Hard Case, V Pro, Adaptor, Syringe filter, Activated carbon filter, Mini driver |
| Warranty | 2-year warranty (PID sensor excluded) |
| Gas | Measuring Range | Low Alarm | High Alarm | Resolution | Operating Temperature | Lamp Type |
|---|---|---|---|---|---|---|
| VOCs | 0 ~ 4,000 ppm | 50 ppm | 100 ppm | 0.1 ppm | -20°C to +50°C | 10.6eV PID Lamp |
| VOCs | 0 ~ 40 ppm | 10 ppm | 25 ppm | 1 ppb | -20°C to +50°C | 10.6eV PID Lamp |
