Product Overview
The Aplisens UZ-2 Overvoltage Protection Circuit is designed to protect 4–20 mA transmitters and auxiliary devices from voltage/current pulses and atmospheric-discharge overvoltages. For accurate selection and pricing, please call 865-900-8844 or email KSmith@CPSCalibrations.com.

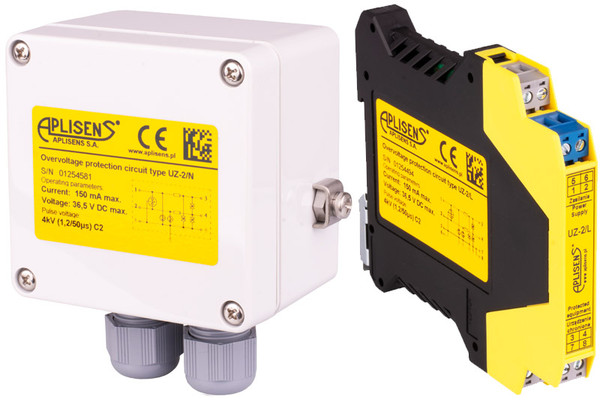

The Aplisens UZ-2 is an overvoltage protection circuit designed to protect measurement transmitters and auxiliary devices from common overvoltage events such as signal-line voltage/current pulses (induction circuit breaks, high-frequency circuits, high-power devices) and atmospheric discharge. The UZ-2 is intended as additional protection for measuring devices (not a primary lightning protector).
- Designed for: 4–20 mA signal lines
- Protection method: diode transiles, resistors, and gas arresters
- Limits protected-device voltage: approximately 43 V (static overload)
- Protection on both leads of the signal line (independently)
- Installation: mount close to protected device; ensure proper earthing
Available in wall-mounted (N) and DIN rail mounted (L) versions.
| Feature | Details |
|---|---|
| Model | UZ-2 Overvoltage Protection Circuit |
| Application | Overvoltage protection for transmitters and auxiliary devices on 4–20 mA lines |
| Maximum Working Current | 150 mA |
| Maximum Working Voltage | 36.5 V DC |
| Protection Level (static overload) | Approx. 43 V limitation (via diode transiles) |
| Ingress Protection | IP65 |
| Versions | Wall-mounted (UZ-2/N) and rail mounted (UZ-2/L) |
Note: UZ-2 is an additional protective barrier and should be used with proper earthing and good installation practices.
UZ-2 pricing depends on mounting version. To quote correctly, we typically confirm:
| What We Need | Examples |
|---|---|
| Mounting Type | Wall-mounted (UZ-2/N) or DIN rail mounted (UZ-2/L) |
| Application | 4–20 mA transmitter protection / auxiliary device protection |
| Installation Notes | Confirm earthing availability and mounting location close to protected device |
Ordering procedure:
Wall-mounted version: UZ-2/N
Rail mounted version: UZ-2/L
Call 865-900-8844 or email KSmith@CPSCalibrations.com.
Need help choosing wall vs DIN rail mounting or where to install the protection device? Reach out and we’ll help.
