Product Overview

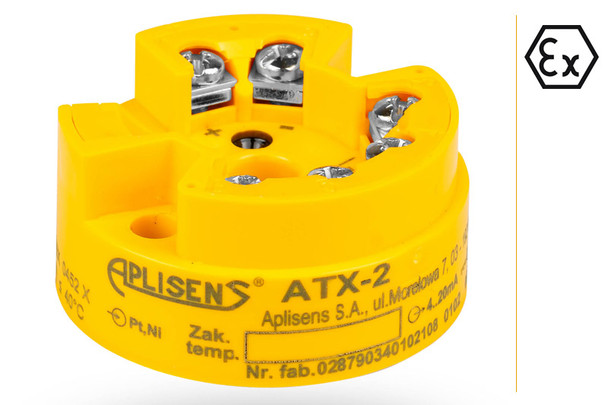

The Aplisens ATX-2 Head-Mounted Temperature Transmitter converts RTD resistance from Pt100 / Pt500 / Pt1000 / Ni100 into a 2-wire 4–20 mA output and supports programmable sensor type and measuring range. It is available with ATEX intrinsic safety approval (II 1G Ex ia IIC T6). For accurate selection and pricing, please call 865-900-8844 or email KSmith@CPSCalibrations.com.
The Aplisens ATX-2 is a compact head-mounted temperature transmitter designed to convert the resistance of an RTD temperature sensor into a standard 4–20 mA current output. The transmitter supports thermoresistance line compensation and can be configured to match your sensor type and measuring range. It is suitable for hazardous areas with ATEX intrinsic safety certification (II 1G Ex ia IIC T6).
- Sensor types: Pt100, Pt500, Pt1000, Ni100
- Output: 4–20 mA
- Power supply: 8…30 VDC (loop powered)
- Mounting: head-mounting system
- Alarm signal: 21 mA or 3.5 mA
- ATEX: II 1G Ex ia IIC T6
Tell us your RTD type and temperature range and we’ll confirm the correct ATX-2 configuration and quote it.
| Feature | Details |
|---|---|
| Model | ATX-2 Head-Mounted Temperature Transmitter |
| Input Signal | RTD: Pt100, Pt500, Pt1000, Ni100 |
| Minimum Measuring Range | 10°C |
| Output Signal | 4–20 mA |
| Power Supply | 8…30 VDC |
| Load Resistance | RO [kΩ] < (UZ – 8 V) / 22 mA |
| Alarm Signal | 21 mA or 3.5 mA |
| Accuracy | For ΔR > 20 Ω: ±0.2% |
| Thermal Error | ±0.05% / 10°C |
| Ambient Temperature | -40…+85°C |
| Typical Accuracy by Sensor/Range | Pt100: -100…200°C ±0.2°C; -200…850°C ±0.4°C Pt500: -100…200°C ±0.2°C Pt1000: -100…200°C ±0.2°C; -100…250°C ±0.4°C Ni100: -60…250°C ±0.2°C |
Intrinsic safety parameters for input terminals and supply terminals are available in the datasheet for hazardous-area loop design.
ATX-2 pricing depends on sensor type, measuring range, and alarm selection. To quote correctly, we typically confirm:
| What We Need | Examples |
|---|---|
| Sensor Type | Pt100, Pt500, Pt1000, or Ni100 |
| Measuring Range | Example: 0…100°C (minimum range span 10°C) |
| Alarm Output | 21 mA or 3.5 mA |
| Hazardous Area | Confirm ATEX Ex ia IIC T6 requirements for your installation |
Ordering format: ATX-2 / ___ / __÷__°C / ___
Example shown in datasheet: ATX-2 / Pt100 / 0…100°C / 23mA (alarm value per your requested configuration). :contentReference[oaicite:0]{index=0}
Call 865-900-8844 or email KSmith@CPSCalibrations.com and we’ll quote the correct configuration.
Need help selecting sensor type (Pt100 vs Pt1000), confirming the loop load, or hazardous-area wiring? Reach out and we’ll help.
