Product Overview
The Aplisens CT-TC High-Temperature Thermocouple Sensor is offered in multiple process-part and material options (ceramic, heat-resistant steel, SiC/CrC), with thermocouple types J, K, S, B and optional ATEX Ex ia certifications. For accurate selection and pricing, please call 865-900-8844 or email KSmith@CPSCalibrations.com.

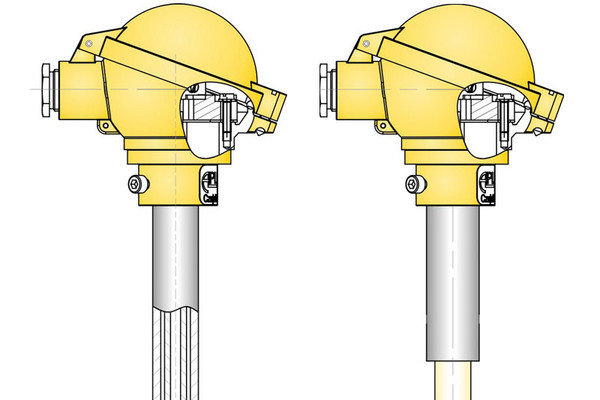

The Aplisens CT-TC (models CTC and CTU) are thermocouple temperature sensors designed for high temperature applications up to 1700°C. Thermocouples generate a voltage proportional to the temperature difference between the measuring junction (hot junction) and the cold junction. Available thermocouple types include J, K, S, and B, with accuracy classes 1 and 2 per IEC 60584.
- Thermocouple types: J, K, S, B
- Max temperature: up to 1700°C
- Accuracy classes: Class 1 or Class 2 (IEC 60584)
- Materials / process parts: heat-resistant stainless steel, ceramic, sialon, SiC/CrC options
- Applications: chemical applications; metal alloys industry
- ATEX: Ex ia certificate option available
Tell us your thermocouple type (J/K/S/B), required immersion length, and whether you need ATEX Ex ia, and we’ll help configure and quote the right CT-TC build.
| Feature | Details |
|---|---|
| Product family | CT thermocouple temperature sensors (CTC / CTU) |
| Thermocouple types | J, K, S, B (single or dual element options) |
| Maximum temperature | Up to 1700°C |
| Accuracy | Class 1 or Class 2 per IEC 60584 |
| Process part options | U1, U2, U3, C1, C2, C3 (plus CT UC variant shown) |
| ATEX Ex ia options | Ex ia / II 1/2 G Ex ia IIC T6...T1 Ga/Gb II 1D Ex ia IIIC T75°C Da |
| Typical applications | Chemical applications; metal alloys industry |
Key specs and ordering structure are summarized from the CT-TC datasheet pages shown. :contentReference[oaicite:0]{index=0}
CT-TC pricing depends on configuration. To quote correctly, we typically confirm:
| What We Need | Examples (from datasheet ordering) |
|---|---|
| Process part | U1 / U2 / U3 / C1 / C2 / C3 (select construction/material option) |
| Certificate | x = standard version, no certificates Ex ia = Ex ia options shown for gas/dust |
| Measuring element | J or 2xJ, K or 2xK, S or 2xS, B or 2xB |
| Class of element | 1/O = Class 1, ungrounded junction 2/O = Class 2, ungrounded junction |
| Length | L= ... required immersion length (mm) |
| Process connection | X = without clamping grip UC1-22, UC2-22 (as listed) |
Provide your TC type (J/K/S/B), single vs dual element, class (1/O or 2/O), immersion length L, and whether you need Ex ia, and we’ll send a formal quote.
Need help selecting the correct process part (C1/C2/C3 vs U1/U2/U3) for your temperature and environment? Reach out and we’ll help.
