Product Overview
The Aplisens PT-25 Temperature Transmitter is a factory configured stainless steel temperature transmitter with a 4–20 mA output for measuring liquid and gaseous media in ranges up to -50…+100°C. For accurate selection and pricing, please call 865-900-8844 or email KSmith@CPSCalibrations.com.

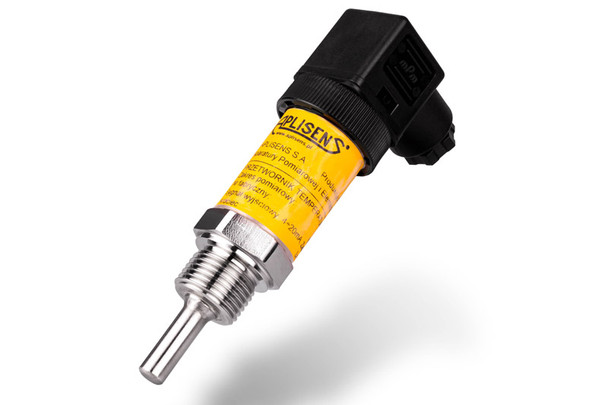

The Aplisens PT-25 is a stainless steel temperature transmitter designed for temperature measurement of liquid and gaseous media. It converts the RTD resistance signal into a standard 4–20 mA output signal. The transmitter and wetted parts are made of stainless steel and are supplied factory configured. Electrical connection options include DIN EN 175301-803 angular connector (PD) or M12x1 connector (PM12).
- Output: 4–20 mA
- Media: liquids & gases
- Typical measuring ranges: -50…50°C, -50…100°C, 0…50°C, 0…100°C (others on request)
- Wetted parts: stainless steel (316)
- Process connection: G1/2" (others on request)
- Sensor diameter: 4 / 6 / 8 mm
- Immersion length: 50…1000 mm
Need a custom immersion length or different process thread? We can quote special configurations.
| Feature | Details |
|---|---|
| Model | PT-25 Temperature Transmitter |
| Output Signal | 4–20 mA |
| Measuring Range (examples) | -50…50°C, -50…100°C, 0…50°C, 0…100°C, 25…75°C, 50…100°C (others on request) |
| Minimum Span | 25 K |
| Accuracy | ±1% |
| Power Supply | 8…35 V DC |
| Alarm Signal | < 3.1 mA or > 26.1 mA (ordering section notes alarm 23 mA) |
| Process Connection | G1/2" (other on request) |
| Immersion Length | 50…1000 mm |
| Wetted Parts Material | 316 stainless steel |
| Sensor Diameter | Ø4, Ø6, Ø8 mm |
| Ingress Protection | PD type: IP65 / PM12 type: IP67 |
PT-25 pricing depends on configuration. To quote correctly, we typically confirm:
| What We Need | Examples |
|---|---|
| Electrical Connection | PD (DIN EN 175301-803) or PM12 (M12x1) |
| Immersion Length (L) | Standard: 50, 100, 150, 200, 250 mm; other length on request (up to 1000 mm) |
| Sensor Diameter | 4 mm, 6 mm, or 8 mm |
| Process Thread | G1/2" standard (others on request) |
| Measuring Range | Select range (e.g., -50…100°C, 0…100°C, etc.) |
Ordering format: PT-25/___/L=...mm/___/___/___/__÷__°C. Call 865-900-8844 or email KSmith@CPSCalibrations.com with your connection, immersion length, diameter, thread, and temperature range for a formal quote.
Need help selecting the right immersion length, connector style, or temperature range? Reach out and we’ll help.
