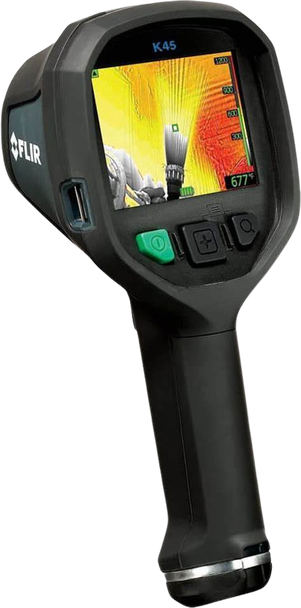

FLIR K45 Thermal Imaging Camera – 320 × 240 FSX® Firefighter TIC
- SKU:
- 72201-0106
Description
The FLIR K45 Thermal Imaging Camera is a rugged, high-performance firefighter TIC designed to provide clear thermal visibility in smoke, darkness, and demanding fireground conditions. With enhanced image quality, multiple firefighting modes, and simple glove-friendly controls, the K45 helps firefighters navigate structures, locate hot spots, and make faster tactical decisions when visibility is limited.
The K45 features a 320 × 240 thermal detector with 60 Hz image frequency and FLIR FSX® Flexible Scene Enhancement. FSX® digitally enhances edges and fine details within the thermal image, helping firefighters more easily recognize structural features, objects, and surroundings in low-visibility and low-contrast environments.
A large 4-inch backlit LCD provides a clear thermal image, while multiple selectable imaging modes allow the K45 to adapt to different fireground situations. Available modes include Basic, Black and White, Fire, Search and Rescue, and Heat Detection.
The K45 also includes internal flash memory capable of storing up to 200 images, allowing firefighters to save thermal images for on-scene review or later incident documentation.
Built for severe firefighting environments, the FLIR K45 features an IP67 enclosure, withstands a 6.6 ft (2 m) drop onto concrete, and is designed to remain operational at temperatures up to 500°F (260°C) for up to 5 minutes.
The FLIR K45 includes the thermal imaging camera, two rechargeable batteries, battery charger, carabiner strap, hard transport case, power supply, printed documentation, retractable lanyard, and USB cable.
- Designed specifically for firefighting and emergency-response applications
- 320 × 240 IR resolution (76,800 thermal pixels)
- Smooth 60 Hz thermal imaging
- FLIR FSX® Flexible Scene Enhancement
- Large 4-inch, 320 × 240 pixel backlit LCD
- Simple glove-friendly controls
- Five selectable firefighting image modes
- Basic, Black and White, Fire, Search and Rescue, and Heat Detection modes
- Internal flash memory
- Stores up to 200 thermal images
- Temperature measurement up to 1,202°F (650°C)
- 51° × 38° field of view
- IP67 water- and dust-resistant enclosure
- 6.6 ft (2 m) drop resistance onto concrete
- Operates at 500°F (260°C) for up to 5 minutes
- Approximately 4-hour battery operating time
- Two rechargeable Li-ion batteries included
- Hard transport case included
- Optional in-truck charger available
Imaging Modes
- Basic
- Black and White
- Fire
- Search and Rescue
- Heat Detection
Typical Applications
- Structural firefighting
- Initial fire attack
- Search and rescue
- Fireground navigation
- Hot-spot detection
- Overhaul operations
- Thermal scene documentation
- Emergency response
- Fire and rescue departments
| Model | FLIR K45 |
| IR Resolution | 320 × 240 pixels (76,800 pixels) |
| Thermal Sensitivity / NETD | <30 mK @ 86°F (30°C) |
| Image Frequency | 60 Hz |
| Detector Type | Focal plane array (FPA), uncooled microbolometer |
| Field of View | 51° × 38° |
| Spectral Range | 7.5–13.5 µm |
| Display | 4-inch backlit LCD, 320 × 240 pixels |
| Image Enhancement | FLIR FSX® Flexible Scene Enhancement |
| Image Modes | Basic, Black and White, Fire, Search and Rescue, Heat Detection |
| Temperature Measurement Range | -4°F to 302°F (-20°C to 150°C); 32°F to 1,202°F (0°C to 650°C) |
| Accuracy | ±7.2°F (±4°C) or ±4% of reading at specified ambient conditions |
| Image Storage | Internal flash memory, up to 200 images |
| Video Streaming | Uncompressed colorized video via USB |
| USB | USB Mini-B |
| Battery | 3.6 V / 4.4 Ah rechargeable Li-ion |
| Battery Operating Time | Approximately 4 hours |
| Charging System | 2-bay battery charger; optional in-truck charger |
| Charging Time | Approximately 2 hours to 85% capacity |
| Start-Up Time | <17 seconds (IR image, no GUI) |
| Operating Temperature | -4°F to 140°F (-20°C to 60°C); 302°F (150°C) for 15 min; 500°F (260°C) for 5 min |
| Storage Temperature | -40°F to 185°F (-40°C to 85°C) |
| Ingress Protection | IP67 (IEC 60529) |
| Shock & Vibration | 25 g shock; 2 g vibration |
| Drop Rating | 6.6 ft (2 m) onto concrete |
| Weight | 2.4 ± 0.1 lb (1.1 ± 0.05 kg) including battery |
| Dimensions | 4.7 × 4.9 × 11 in (120 × 125 × 280 mm) |
| Included | FLIR K45 thermal imaging camera, 2 batteries, battery charger, carabiner strap, hard transport case, power supply, printed documentation, retractable lanyard and USB cable |
Specifications are subject to manufacturer updates. Refer to current FLIR product documentation and the FLIR Kx5 Series User's Manual for complete operating, safety and maintenance requirements.
FLIR Fire Service 2-5-10 Limited Warranty
The FLIR K45 is a qualifying product under FLIR's Fire Service 2-5-10 Limited Warranty when properly registered with FLIR within 60 days of the original retail purchase date.
- 2 Years: Product batteries
- 5 Years: Product components, excluding batteries and sensors
- 10 Years: Uncooled thermal camera sensor
Warranty eligibility, registration requirements, exclusions, and coverage are subject to FLIR's complete warranty terms.
