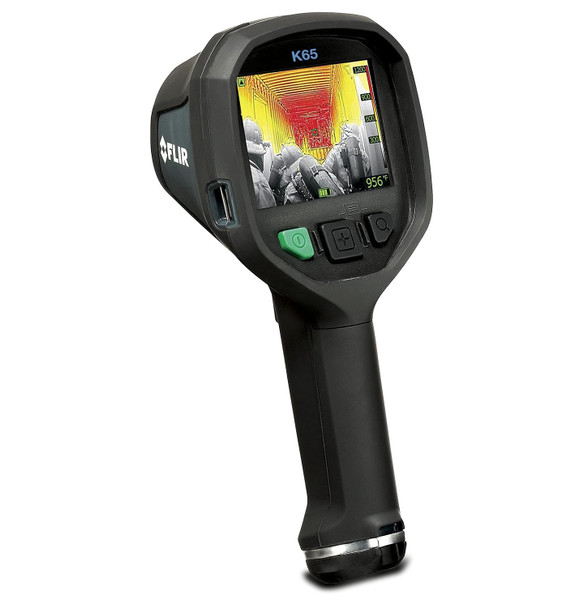

FLIR K65 Thermal Imaging Camera – 320 × 240 NFPA-Compliant Firefighter TIC
- SKU:
- 72202-0303
Description
The FLIR K65 Thermal Imaging Camera is a rugged, high-performance firefighter TIC designed for demanding structural firefighting and emergency-response applications. As the NFPA-compliant model in the FLIR K-Series lineup, the K65 combines advanced thermal imaging, multiple firefighting modes, onboard image and video recording, and a durable fireground-ready design.
The K65 features a 320 × 240 thermal detector with smooth 60 Hz image frequency and FLIR FSX® Flexible Scene Enhancement. FSX® enhances edges and fine details within the thermal image, helping firefighters better recognize structural features, objects, people, and surroundings in smoke-filled and low-visibility environments.
A large 4-inch backlit LCD provides a clear thermal image, while five selectable imaging modes allow firefighters to optimize the camera for different fireground situations. Available modes include Basic, Black and White, Fire, Search and Rescue, and Heat Detection.
The K65 also features internal flash memory with thermal image and MPEG-4 video recording. The camera can store up to 200 image or video files, with video clips up to five minutes each, providing valuable documentation for incident review, training, and post-fire analysis.
Designed for severe fireground environments, the FLIR K65 features an IP67 enclosure, withstands a 6.6 ft (2 m) drop onto concrete, and is designed to remain operational at temperatures up to 500°F (260°C) for up to 5 minutes. The K65 is also compliant with NFPA 1801:2021 requirements for thermal imagers used by the fire service.
The FLIR K65 includes the thermal imaging camera, two rechargeable batteries, battery charger, carabiner strap, hard transport case, power supply, printed documentation, retractable lanyard, and USB cable.
- NFPA 1801:2021 compliant firefighter thermal imaging camera
- Designed for structural firefighting and emergency response
- 320 × 240 IR resolution (76,800 thermal pixels)
- Smooth 60 Hz thermal imaging
- FLIR FSX® Flexible Scene Enhancement
- Large 4-inch, 320 × 240 pixel backlit LCD
- Glove-friendly fireground controls
- Five selectable firefighting image modes
- Basic, Black and White, Fire, Search and Rescue, and Heat Detection modes
- Internal flash memory
- Thermal image and MPEG-4 video recording
- Stores up to 200 image or video files
- Video clips up to 5 minutes each
- Temperature measurement up to 1,202°F (650°C)
- 51° × 38° field of view
- IP67 water- and dust-resistant enclosure
- 6.6 ft (2 m) drop resistance onto concrete
- Operates at 500°F (260°C) for up to 5 minutes
- Approximately 4-hour battery operating time
- Two rechargeable Li-ion batteries included
- Hard transport case included
- Optional in-truck charger available
Imaging Modes
- Basic: Designed for initial fire attack and rescue operations
- Black and White: Grayscale thermal representation
- Fire: Designed for higher-temperature scenes where open flames are present
- Search and Rescue: Optimized for lower-temperature search and rescue situations
- Heat Detection: Highlights hotter areas of the scene to assist with locating hot spots
Typical Applications
- Structural firefighting
- Initial fire attack
- Search and rescue
- Fireground navigation
- Victim location
- Hot-spot detection
- Overhaul operations
- Fire investigation support
- Thermal scene documentation
- Post-incident review and training
- Emergency response
- Fire and rescue departments
| Model | FLIR K65 |
| Compliance | NFPA 1801:2021 |
| IR Resolution | 320 × 240 pixels (76,800 pixels) |
| Thermal Sensitivity / NETD | <30 mK @ 86°F (30°C) |
| Image Frequency | 60 Hz |
| Detector Type | Focal plane array (FPA), uncooled microbolometer |
| Field of View | 51° × 38° |
| Spectral Range | 7.5–13.5 µm |
| Display | 4-inch backlit LCD, 320 × 240 pixels |
| Image Enhancement | FLIR FSX® Flexible Scene Enhancement |
| Image Modes | Basic, Black and White, Fire, Search and Rescue, Heat Detection |
| Temperature Measurement Range | -4°F to 302°F (-20°C to 150°C); 32°F to 1,202°F (0°C to 650°C) |
| Accuracy | ±7.2°F (±4°C) or ±4% of reading at specified ambient conditions |
| Storage Media | Internal flash memory |
| Image Storage | Thermal image storage |
| Video Recording | MPEG-4 to internal flash memory |
| Storage Capacity | Up to 200 image or video files; maximum video duration 5 minutes per file |
| Video Streaming | Uncompressed colorized video via USB |
| USB | USB Mini-B |
| Battery | 3.6 V / 4.4 Ah rechargeable Li-ion |
| Battery Operating Time | Approximately 4 hours |
| Charging System | 2-bay battery charger; optional in-truck charger |
| Charging Time | Approximately 2 hours to 85% capacity |
| Start-Up Time | <17 seconds (IR image, no GUI) |
| Operating Temperature | -4°F to 140°F (-20°C to 60°C); 302°F (150°C) for 15 min; 500°F (260°C) for 5 min |
| Storage Temperature | -40°F to 185°F (-40°C to 85°C) |
| Ingress Protection | IP67 (IEC 60529) |
| Shock & Vibration | 25 g shock; 2 g vibration |
| Drop Rating | 6.6 ft (2 m) onto concrete |
| Weight | 2.4 ± 0.1 lb (38.4 ± 1.6 oz / 1.1 ± 0.05 kg) including battery |
| Dimensions | 4.7 × 4.9 × 11 in (120 × 125 × 280 mm) |
| Included | FLIR K65 thermal imaging camera, 2 batteries, battery charger, carabiner strap, hard transport case, power supply, printed documentation, retractable lanyard and USB cable |
Specifications are subject to manufacturer updates. Refer to current FLIR product documentation and the FLIR Kx5 Series User's Manual for complete operating, safety and maintenance requirements.
FLIR Fire Service 2-5-10 Limited Warranty
The FLIR K65 is a qualifying product under FLIR's Fire Service 2-5-10 Limited Warranty when properly registered with FLIR within 60 days of the original retail purchase date.
- 2 Years: Product batteries
- 5 Years: Product components, excluding batteries and sensors
- 10 Years: Uncooled thermal camera sensor
Warranty eligibility, registration requirements, exclusions, and coverage are subject to FLIR's complete warranty terms.
