Description
The Aplisens APCE-2000 is configured per application (pressure range, process connection, wetted materials, PD/PZ housing, and ATEX/Ex approvals). To ensure proper selection and accurate pricing, please call 865-900-8844 or email KSmith@CPSCalibrations.com for a custom quote.

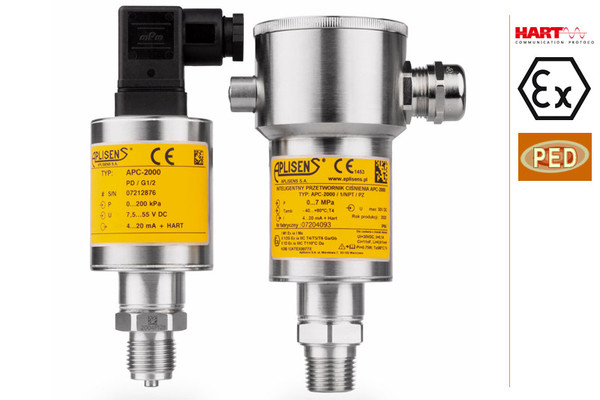

The Aplisens APCE-2000 is a smart pressure transmitter for measurement of gauge, vacuum/underpressure, and absolute pressure of gases, vapours, and liquids. It features a 4–20 mA output with HART for configuration, diagnostics, and digital integration.
- Output: 4–20 mA + HART
- Accuracy: ±0.1% of calibrated range
- Rangeability: up to 100:1 (range dependent)
- Applications: gases / vapours / liquids; gauge, vacuum, absolute pressure
- Intrinsic Safety option: ATEX Ex ia versions available (configuration dependent)
- Configuration: via HART communicator or PC with HART/USB interface
Share your pressure range, connection type, medium, and required approvals and we’ll help select the correct APCE-2000 configuration and provide a formal quote.
| Feature | Details |
|---|---|
| Model | Aplisens APCE-2000 |
| Transmitter Type | Smart Pressure Transmitter |
| Output / Communication | 4–20 mA + HART |
| Accuracy | ±0.1% of calibrated range |
| Rangeability | Up to 100:1 (range dependent) |
| Measuring Range (Typical Span) | From very low mbar ranges up to 0…1000 bar (range selection depends on version) |
| Power Supply | 7.5…55 VDC (Ex ia: 7.5…30 VDC) |
| Load Resistance | HART communication requires min. 240 Ω (application dependent) |
| Wetted Parts / Diaphragm | SS316L; options include Hastelloy C276 and gold-plated diaphragm (Au) depending on configuration |
| Casing | SS304 |
| Ambient Temperature | -40…85°C (Ex versions typically -40…80°C) |
| Medium Temperature | -40…120°C (higher temperatures typically require impulse line or diaphragm seal) |
| Housing / Protection | PD: IP65 with DIN EN 175301-803 connector; PZ: IP66 with packing gland (M20×1.5) |
For steam or hot media, use an impulse line/siphon. A needle valve upstream simplifies installation and service.
APCE-2000 pricing depends on configuration. To quote correctly, we typically confirm:
| What We Need | Examples |
|---|---|
| Pressure Type | Gauge / Vacuum (underpressure) / Absolute |
| Nominal Range + Calibrated Range | Example: nominal 0…7 bar, calibrated 0…6 bar (set to match your process) |
| Housing Version | /PD (DIN EN 175301-803, IP65) or /PZ (IP66, packing gland) |
| Approvals | /Exia (ATEX Ex ia), /PED (2014/68/EU PED), etc. |
| Wetted Materials | SS316L standard; Hastelloy C276 or Au options depending on range/version |
| Process Connection | G1/2, M20×1.5, 1/2" NPT, flush diaphragm options, diaphragm seals (application dependent) |
| Special Options | /HS ultra-stable version (ranges dependent), /Tlen oxygen service, extended compensation -40…80°C |
Example ordering style: APCE-2000PD / Exia / (Nominal Range) / (Calibrated Range) / (Process Connection).
Call 865-900-8844 or email KSmith@CPSCalibrations.com and we’ll confirm the correct configuration and provide a formal quote.
Need help choosing a range or process connection? Contact us and we’ll make sure you get the correct APCE-2000 build for your application.
