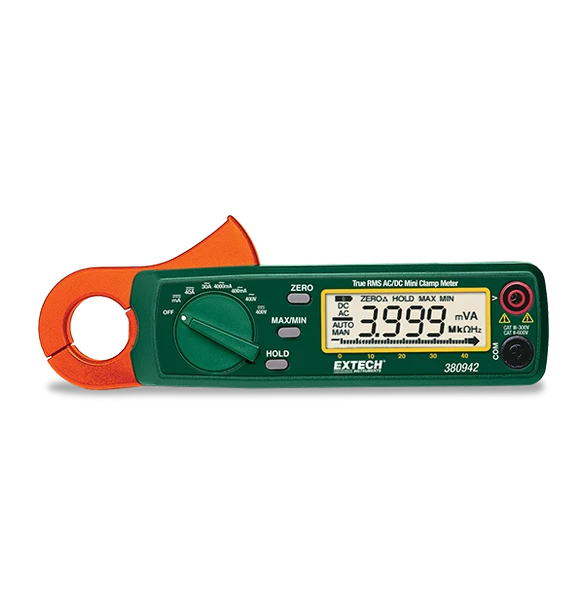

Extech 380942 – 30A True RMS AC/DC Mini Clamp Meter
- Availability:
- Usually ships in 3 business days
Description
The compact Extech 380942 is a 30 Amp mini AC/DC clamp meter. The clamp meter has a remarkable 0.1mA resolution (AC), very low-current sensitivity, and a small diameter jaw designed to reach into small areas. The 30 Amp range with 0.1mA (AC) and 1mA (DC) resolution is optimized for finding problems where very low current variances would be missed by standard clamp meters. This mini clamp meter is useful for troubleshooting tasks in plant maintenance, electrical, HVAC, and telecom work, as well as residential electrical, fleet maintenance, marine, and motorcycle repairs. This CAT III-rated True RMS mini clamp meter comes with test leads, 2 AA batteries, soft carrying case, and user manual.
- The compact Extech 380942 is a 30 Amp mini AC/DC clamp meter.
- The clamp meter has a remarkable 0.1mA resolution (AC), very low-current sensitivity, and a small diameter jaw designed to reach into small areas.
- The 30 Amp range with 0.1mA (AC) and 1mA (DC) resolution is optimized for finding problems where very low current variances would be missed by standard clamp meters.
- This mini clamp meter is useful for troubleshooting tasks in plant maintenance, electrical, HVAC, and telecom work, as well as residential electrical, fleet maintenance, marine, and motorcycle repairs.
- This CAT III-rated True RMS mini clamp meter comes with test leads, 2 AA batteries, soft carrying case, and user manual.
| Model | Extech 380942 |
| AC Current | 400mA, 4A, 30A |
| AC Current Basic Accuracy | ±1.5% |
| AC Current Max Resolution | 0.1mA |
| AC Voltage | 400V |
| AC Voltage Basic Accuracy | ±(2.0% of reading + 5 digits) |
| AC Voltage Max Resolution | 0.1V |
| DC Current | 4A, 40A |
| DC Current Max Resolution | 0.001A |
| DC Voltage | 400V |
| DC Voltage Basic Accuracy | ±(1.0% of reading + 2 digits) |
| DC Voltage Max Resolution | 0.1V |
| Jaw Size | 0.9" (23mm), conductors up to 4/0 AWG |
| True RMS | Yes |
| Certifications | 380942-NIST_S: CE, UL, NIST 380942_S: CE, UL |
| Dimensions | 7 × 1.8 × 1.3" (178 × 45 × 32mm) |
| Display | 4000-count segment LCD |
| Safety Category | CAT III-300V |
| Warranty | 2 years |
| Weight | 8oz (225g) |
Specifications are subject to manufacturer updates. Refer to current Extech product documentation for complete operating, safety and maintenance requirements.
Extech Limited Warranty
The Extech 380942 is covered by Extech's standard limited warranty for this product. Register your product with Extech promptly after purchase to activate full coverage.
Warranty term, eligibility, registration requirements, exclusions, and coverage are subject to Extech's complete warranty terms for this model.
