Extech

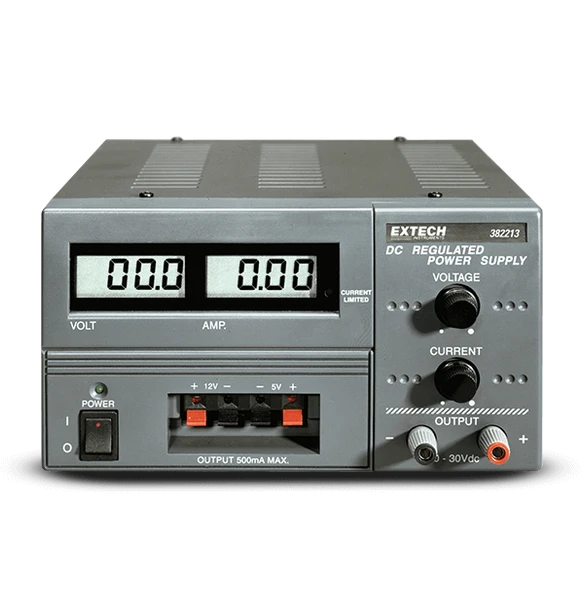

Extech 382213 – Digital Triple Output DC Power Supply
- SKU:
- 382213
- UPC:
- 793950382134
- Availability:
- Usually ships in 3 business days
Description
Ideal for a wide range of applications including bench testing, field service, hobby, and telecommunication equipment, the solid state, compact Extech 382213 Digital Triple Output DC Power Supply delivers clean, reliable power while protecting itself and any device under test (DUT) from damage. It offers three choices of power output: adjustable 0 to 30 Volt, 0 to 3 Amp, plus fixed 5 and 12 Volt. Featuring a digital LCD display, the 382213 also includes overload and short circuit protection, constant voltage/current, easy snap terminals for 5 and 12 Volt outputs, and a current-limited front panel LED indicator. It complete with a power cord.
- Ideal for a wide range of applications including bench testing, field service, hobby, and telecommunication equipment, the solid state, compact Extech 382213 Digital Triple Output DC Power Supply delivers clean, reliable power while protecting itself and any device under test (DUT) from damage.
- It offers three choices of power output: adjustable 0 to 30 Volt, 0 to 3 Amp, plus fixed 5 and 12 Volt.
- Featuring a digital LCD display, the 382213 also includes overload and short circuit protection, constant voltage/current, easy snap terminals for 5 and 12 Volt outputs, and a current-limited front panel LED indicator.
- It complete with a power cord.
| Model | Extech 382213 |
| Fixed Outputs | 5V/0.5A (cont.), 1A(max); 12V/0.5A (cont.), 1A(max) |
| Line Voltage Regulation | <0.05% + 10mV |
| Load Voltage Regulation | <0.05% + 10mV |
| Output Current | 0 to 3A |
| Output Voltage | 0 to 30V DC |
| Ripple and Noise | <5mV |
| Certifications | CE |
| Dimensions | 6 × 5.6 × 9.5" (152 × 142 × 242) |
| Power | 110/220VAC 50/60Hz |
| Warranty | 2 years |
| Weight | 11lbs. (5kg) |
Specifications are subject to manufacturer updates. Refer to current Extech product documentation for complete operating, safety and maintenance requirements.
Extech Limited Warranty
The Extech 382213 is covered by Extech's standard limited warranty for this product. Register your product with Extech promptly after purchase to activate full coverage.
Warranty term, eligibility, registration requirements, exclusions, and coverage are subject to Extech's complete warranty terms for this model.
