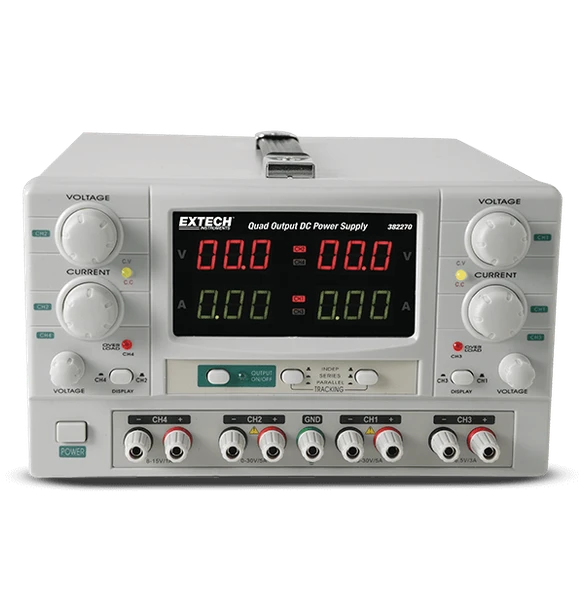

Extech 382270 – Quad Output DC Power Supply
- SKU:
- 382270
- UPC:
- 793950322703
- Availability:
- Usually ships in 3 business days
Description
382270 is a Quad Output DC Power Supply has two 0 to 30V/0 to 5A outputs plus two fixed auxiliary outputs of 3 to 6.5V/3A and 15V/1A. The two 30V outputs can be combined in parallel for 10A or in series for 60V. Comes complete with 4 pairs of test leads (banana plug to alligator clip) and an AC cord.
- 382270 is a Quad Output DC Power Supply has two 0 to 30V/0 to 5A outputs plus two fixed auxiliary outputs of 3 to 6.5V/3A and 15V/1A.
- The two 30V outputs can be combined in parallel for 10A or in series for 60V.
- Comes complete with 4 pairs of test leads (banana plug to alligator clip) and an AC cord.
| Model | Extech 382270 |
| Line Current Regulation | 2mA ±3mA |
| Line Voltage Regulation | 0.1mV ±3mV |
| Load Current Regulation | 2mA ±5mA |
| Load Voltage Regulation | 0.5mV ±3mV |
| Output Current | 0 to 5A, 0 to 5A, 3A (fixed), 1A (fixed) |
| Output Voltage | 0 to 30V, 0 to 30V, 3 to 6.5V, 8 to 15V |
| Ripple and Noise | <0.5mVrms |
| Dimensions | 10.2 × 6.3 ×14.5" (260 x 160 × 370mm) |
| Power | 110 to 240VAC, 50/60Hz |
| Warranty | 2 years |
| Weight | 26.5lbs (12kg) |
Specifications are subject to manufacturer updates. Refer to current Extech product documentation for complete operating, safety and maintenance requirements.
Extech Limited Warranty
The Extech 382270 is covered by Extech's standard limited warranty for this product. Register your product with Extech promptly after purchase to activate full coverage.
Warranty term, eligibility, registration requirements, exclusions, and coverage are subject to Extech's complete warranty terms for this model.
