Extech

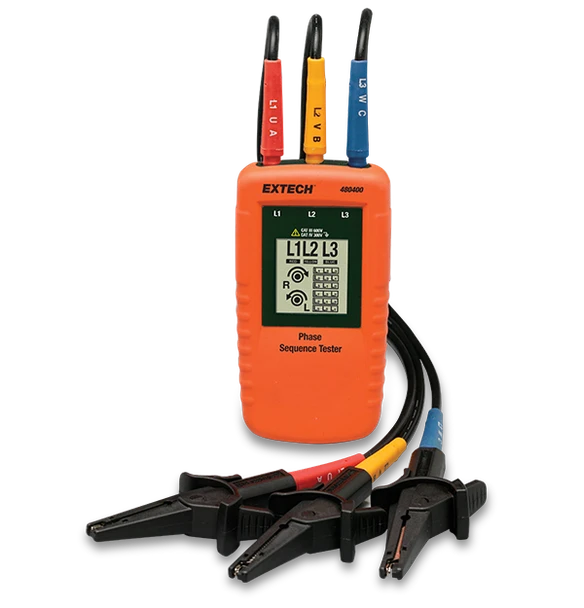

Extech 480400 – Phase Sequence Tester
- SKU:
- 480400
- UPC:
- 793950484005
- Availability:
- Usually ships in 3 business days
Description
The 480400 Phase Sequence Tester has a 40 to 600-Volt rated range for testing phase orientation of 3-phase power sources over a 15 to 400Hz frequency range. Multiline graphical LCD indicates phase orientation (clockwise or counter-clockwise) and whether each of the phases is live. No battery required. Comes complete with cable, three large color coded alligator clips, and pouch case.
- The 480400 Phase Sequence Tester has a 40 to 600-Volt rated range for testing phase orientation of 3-phase power sources over a 15 to 400Hz frequency range.
- Multiline graphical LCD indicates phase orientation (clockwise or counter-clockwise) and whether each of the phases is live.
- No battery required.
- Comes complete with cable, three large color coded alligator clips, and pouch case.
| Model | Extech 480400 |
| AC Voltage | 40 to 600V AC |
| Frequency | 15 to 400Hz |
| Phase Sequence | Yes |
| Certifications | CE |
| Dimensions | 5.1 × 2.7 × 1.25" (130 × 69 × 32mm) |
| Safety Category | CAT III-600V |
| Warranty | 2 years |
| Weight | 4.5oz (130g) |
Specifications are subject to manufacturer updates. Refer to current Extech product documentation for complete operating, safety and maintenance requirements.
Extech Limited Warranty
The Extech 480400 is covered by Extech's standard limited warranty for this product. Register your product with Extech promptly after purchase to activate full coverage.
Warranty term, eligibility, registration requirements, exclusions, and coverage are subject to Extech's complete warranty terms for this model.
