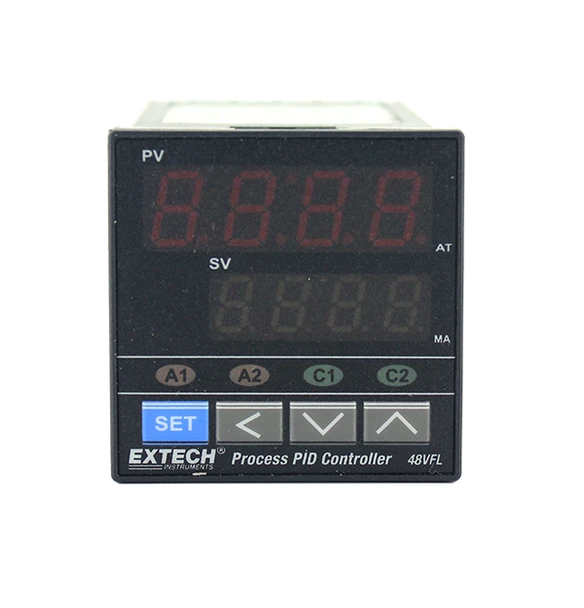

Extech 48VFL11 – 1/16 DIN Temperature PID Controller with One Relay Output
- SKU:
- 48VFL11
- UPC:
- 793950480113
- Availability:
- Usually ships in 3 business days
Description
The Extech 48VFL11 Temperature PID Controller offers fuzzy logic enhanced PID and a soft start feature that protects heaters from cold starts. PID plus fuzzy logic tackles even the most demanding applications, eliminating over-shoot, unwanted process fluctuations, and drift. The soft start feature is ideally suited for processes such as those employed in the thermoplastics industry: where careful, exact, and slow heating of product is required. It accepts thermocouple and RTD inputs. Includes single stage ramp and soak program with ramp-to-set point limit that can be combined with the soft start feature for critical process demands. Also available with 4-20 mA output (48VFL13).
- The Extech 48VFL11 Temperature PID Controller offers fuzzy logic enhanced PID and a soft start feature that protects heaters from cold starts.
- PID plus fuzzy logic tackles even the most demanding applications, eliminating over-shoot, unwanted process fluctuations, and drift.
- The soft start feature is ideally suited for processes such as those employed in the thermoplastics industry: where careful, exact, and slow heating of product is required.
- It accepts thermocouple and RTD inputs.
- Includes single stage ramp and soak program with ramp-to-set point limit that can be combined with the soft start feature for critical process demands.
- Also available with 4-20 mA output (48VFL13).
| Model | Extech 48VFL11 |
| Included | Complete with mounting bracket hardware and screw terminals for easy wiring. |
Specifications are subject to manufacturer updates. Refer to current Extech product documentation for complete operating, safety and maintenance requirements.
Extech Limited Warranty
The Extech 48VFL11 is covered by Extech's standard limited warranty for this product. Register your product with Extech promptly after purchase to activate full coverage.
Warranty term, eligibility, registration requirements, exclusions, and coverage are subject to Extech's complete warranty terms for this model.
