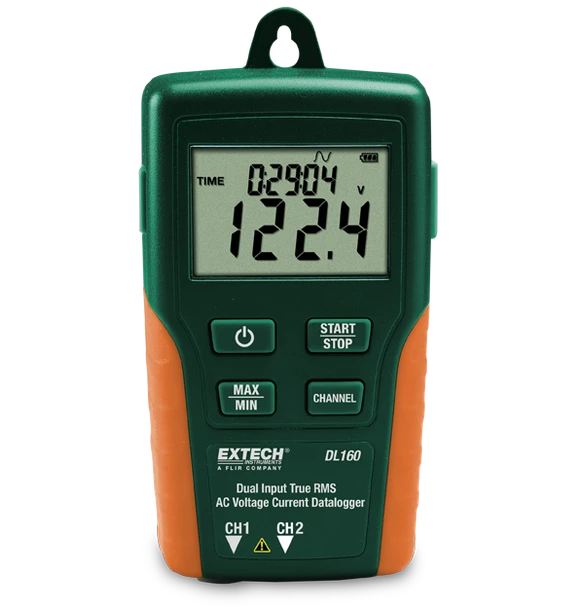

Extech DL160 – Dual Input True RMS AC Voltage/Current Datalogger
- SKU:
- DL160
- UPC:
- 793950471609
- Availability:
- Usually ships in 3 business days
Description
The DL160 is a Dual Input True RMS AC Voltage/Current Data logger. Simultaneously data log 2 channels of up to 256,000 readings of TRMS AC Voltage (600V) or Current (200A) or one AC Voltage and one AC Current input with a user programmable sample rate from 1 second to 24 hours. LCD displays time/date, current reading, and min/max. Readings can be downloaded to your PC via the USB interface. Featuring Normal, Peak, and Capture (user specified trigger level) recording modes.
- The DL160 is a Dual Input True RMS AC Voltage/Current Data logger.
- Simultaneously data log 2 channels of up to 256,000 readings of TRMS AC Voltage (600V) or Current (200A) or one AC Voltage and one AC Current input with a user programmable sample rate from 1 second to 24 hours.
- LCD displays time/date, current reading, and min/max.
- Readings can be downloaded to your PC via the USB interface.
- Featuring Normal, Peak, and Capture (user specified trigger level) recording modes.
| Model | Extech DL160 |
| AC Current | 10 to 200A |
| AC Current Basic Accuracy | ±(2% of reading ± 1A) |
| AC Current Max Resolution | 0.1A |
| AC Voltage | 10 to 600V |
| AC Voltage Basic Accuracy | ±(2% of reading ±1V) |
| AC Voltage Max Resolution | 0.1V |
| Memory | 262,000 points (single channel), 131,000 (dual channels) |
| PC Interface | USB |
| Sampling Rate | 1 second to 24 hours |
| True RMS | Yes |
| Certifications | CE |
| Dimensions | 4.5 × 2.5 × 1.3" (114 × 63 × 34mm) |
| Power | 4 × AAA (1.5V) batteries |
| Safety Category | CATIII - 600V |
| Warranty | 2 years |
| Weight | 8.7oz (248g) |
| Included | Complete with 2 current clamps, two sets of test leads, 2 sets of alligator clips, software, USB cable, Universal AC Adapter, and 4 x AAA and 2 x CR2032 Batteries. |
Specifications are subject to manufacturer updates. Refer to current Extech product documentation for complete operating, safety and maintenance requirements.
Extech Limited Warranty
The Extech DL160 is covered by Extech's standard limited warranty for this product. Register your product with Extech promptly after purchase to activate full coverage.
Warranty term, eligibility, registration requirements, exclusions, and coverage are subject to Extech's complete warranty terms for this model.
