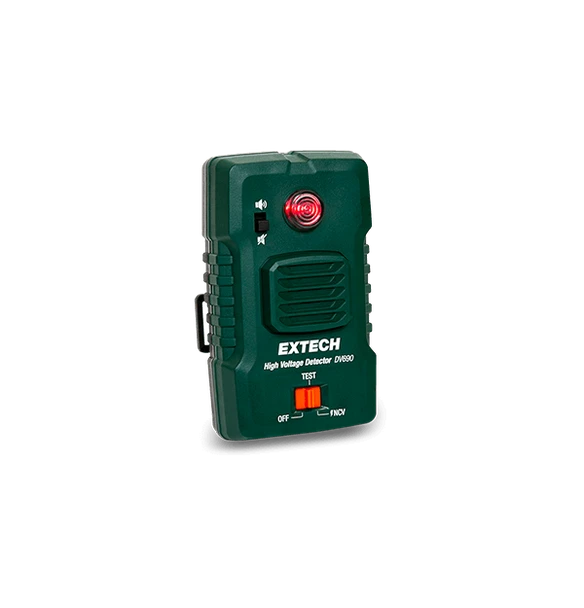

Extech DV690 – Non-contact High Voltage Detector (69 kV)
- SKU:
- DV690
- UPC:
- 793950406915
- Availability:
- Usually ships in 3 business days
Description
The Extech DV690 is a rugged and reliable voltage detector that can quickly and safely detect up to 69 kV in high-voltage (HV) electrical systems. This non-contact, industrial-grade tool provides an extra layer of protection for anyone who works around HV electrical systems including electric power utility, storm restoration, telecommunications, and public safety professionals. Audible and visual alarms notify users of dangerous voltage presence, helping them maintain a safe distance in hazardous locations. Plus, five flexible mounting options make it easy to operate the device to get the job done efficiently.
- The Extech DV690 is a rugged and reliable voltage detector that can quickly and safely detect up to 69 kV in high-voltage (HV) electrical systems.
- This non-contact, industrial-grade tool provides an extra layer of protection for anyone who works around HV electrical systems including electric power utility, storm restoration, telecommunications, and public safety professionals.
- Audible and visual alarms notify users of dangerous voltage presence, helping them maintain a safe distance in hazardous locations.
- Plus, five flexible mounting options make it easy to operate the device to get the job done efficiently.
| Model | Extech DV690 |
| Audible/Visible Indication | Beeper (>106 dB at 0 cm), flashing LED (507 lux) |
| Drop test | 4 ft (1.2 m) |
| Frequency Bandwidth | 50/60 Hz |
| Voltage Detection (Non-Contact) | 100 V AC to 69 kV AC |
| Certifications | CE |
| Dimensions | 5.24 × 3.03 × 2.05 in (133 × 77 × 52 mm) |
| IP Rating | IP54 |
| Power | 3 × AA (1.5V) batteries |
| Safety Category | EN 61326-1 |
| Warranty | 2 years |
| Weight | 0.49 lb (220 g) |
Specifications are subject to manufacturer updates. Refer to current Extech product documentation for complete operating, safety and maintenance requirements.
Extech Limited Warranty
The Extech DV690 is covered by Extech's standard limited warranty for this product. Register your product with Extech promptly after purchase to activate full coverage.
Warranty term, eligibility, registration requirements, exclusions, and coverage are subject to Extech's complete warranty terms for this model.
