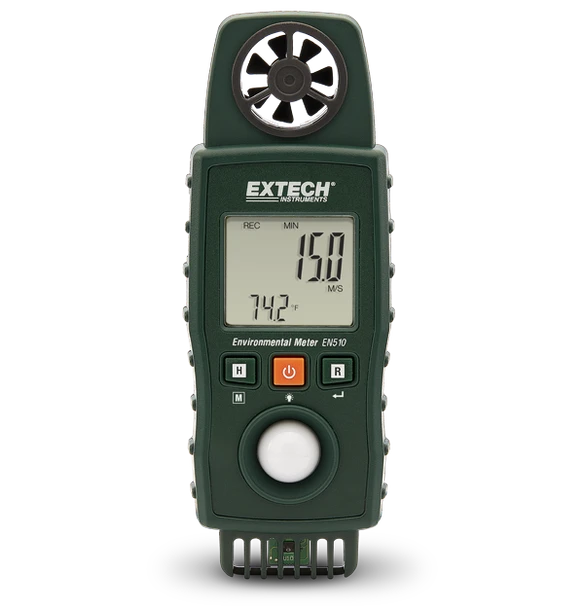

Extech EN510 – 10-in-1 Environmental Meter
- SKU:
- EN510
- UPC:
- 793950440513
- Availability:
- Usually ships in 3 business days
Description
The convenient Extech EN510 is a 10-in-1 environmental meter that can measure air velocity, air flow, air temperature, Type-K temperature, heat index, and humidity. It also offers wet bulb, dew point, windchill, and light level measurements. The EN510 includes a built-in, replaceable low friction ball bearing mini vane wheel, a precision photo diode with cosine and color correction filter, and a capacitive humidity sensor for high accuracy. The Type-K input accepts standard Type K Thermocouple probes to measure surface temperature up to 1300°C (2372°F). The large dual LCD display is backlit for easy use in dimly lit areas, and auto power off (with disable) helps save the battery.
- The convenient Extech EN510 is a 10-in-1 environmental meter that can measure air velocity, air flow, air temperature, Type-K temperature, heat index, and humidity.
- It also offers wet bulb, dew point, windchill, and light level measurements.
- The EN510 includes a built-in, replaceable low friction ball bearing mini vane wheel, a precision photo diode with cosine and color correction filter, and a capacitive humidity sensor for high accuracy.
- The Type-K input accepts standard Type K Thermocouple probes to measure surface temperature up to 1300°C (2372°F).
- The large dual LCD display is backlit for easy use in dimly lit areas, and auto power off (with disable) helps save the battery.
| Model | Extech EN510 |
| Air Velocity (ft/min) | 80 to 3937 ft/min |
| Air Velocity (ft/min) Basic Accuracy | ±3% full scale |
| Air Velocity (ft/min) Max Resolution | 1ft/min |
| Air Velocity (km/h) | 1.4 to 72km/h |
| Air Velocity (km/h) Basic Accuracy | ±3% full scale |
| Air Velocity (km/h) Max Resolution | 0.1km/h |
| Air Velocity (knots) | 0.8 to 38.8 knots |
| Air Velocity (knots) Basic Accuracy | ±3% full scale |
| Air Velocity (knots) Max Resolution | 0.1knots |
| Air Velocity (m/s) | 0.4 to 20m/s |
| Air Velocity (m/s) Basic Accuracy | ±3% full scale |
| Air Velocity (m/s) Max Resolution | 0.1m/s |
| Air Velocity (mph) | 0.9 to 44.7MPH |
| Air Velocity (mph) Basic Accuracy | ±3% full scale |
| Air Velocity (mph) Max Resolution | 0.1MPH |
| Air Volume (CFM) | 0.847 to 1,271,300 |
| Air Volume (CFM) Max Resolution | 0.001CFM |
| Air Volume (CMM) | 0.024 to 36,000 |
| Air Volume (CMM) Max Resolution | 0.001CMM |
| Dew Point | -13.5 to 120.0°F (-25.3 to 49.0°C) |
| Dew Point Max Resolution | 0.1° |
| Heat Index | 32 to 212°F (0 to 100°C) |
| Heat Index Max Resolution | 0.1° |
| Light (Foot Candle) | 0 to 1860 Fc |
| Light (Foot Candle) Basic Accuracy | 0.1Fc |
| Light (Foot Candle) Max Resolution | ±5% |
| Light (Lux) | 0 to 20,000 Lux |
| Light (Lux) Basic Accuracy | 1 Lux |
| Light (Lux) Max Resolution | ±5% |
| Relative Humidity | 10 to 95% |
| Relative Humidity Basic Accuracy | ±0.4% |
| Relative Humidity Max Resolution | 0.1% |
| Temperature (Air) | 32 to 122°F (0 to 50°C) |
| Temperature (Air) Basic Accuracy | ±2.5°F (±1.2°C) |
| Temperature (Air) Max Resolution | 0.1° |
| Temperature (Contact) | -148°F to 2372°F (-100°C to 1300°C) |
| Temperature (Contact) Basic Accuracy | ±(0.4% + 1.8°F); ±(0.4% + 1°C) |
| Temperature (Contact) Max Resolution | 0.1° |
| Wet Bulb | 22.2 to 120°F (-5.4 to 49.0°C) |
| Wet Bulb Max Resolution | 0.1° |
| Windchill | 15 to 112°F (-9.4 to 44.2°C) |
| Windchill Basic Accuracy | ±3.6°F (±2°C) |
Specifications are subject to manufacturer updates. Refer to current Extech product documentation for complete operating, safety and maintenance requirements.
Extech Limited Warranty
The Extech EN510 is covered by Extech's standard limited warranty for this product. Register your product with Extech promptly after purchase to activate full coverage.
Warranty term, eligibility, registration requirements, exclusions, and coverage are subject to Extech's complete warranty terms for this model.
