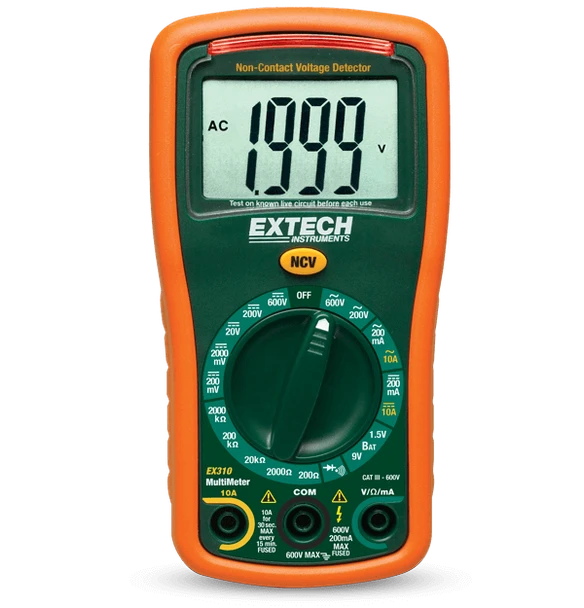

Extech EX310 – 9 Function Mini MultiMeter + Non-Contact Voltage Detector
- SKU:
- EX310
- UPC:
- 793950393109
- Availability:
- Usually ships in 3 business days
Description
The Extech EX310 is a compact manual ranging multi meter which features an extra-large 2000 count display and built-in non-contact AC voltage detector (NCV). AC/DC Voltage & Current, Resistance, Diode/Continuity measurements. Includes a battery test function (1.5 Volt and 9 Volt). The rubber holster protects the meter. UL listed Cat III – 600 Volt safety rating. Includes test leads, 9 Volt battery, and tilt stand.
- The Extech EX310 is a compact manual ranging multi meter which features an extra-large 2000 count display and built-in non-contact AC voltage detector (NCV).
- AC/DC Voltage & Current, Resistance, Diode/Continuity measurements.
- Includes a battery test function (1.5 Volt and 9 Volt).
- The rubber holster protects the meter.
- UL listed Cat III – 600 Volt safety rating.
- Includes test leads, 9 Volt battery, and tilt stand.
| Model | Extech EX310 |
| AC Current | 0.1mA to 10A |
| AC Voltage | 0.1V to 600V |
| Continuity | Yes |
| DC Current | 0.1mA to 10A |
| DC Voltage | 0.1mV to 600V |
| Diode Test | Yes |
| Non-Contact Voltage (NCV) Detector | 100 to 600VAC |
| Resistance | 0.1Ω to 2000kΩ |
| UVA | 0 to 1.999mW/cm², 2 to 20.00mW/cm² |
| UVA Basic Accuracy | ±4% full scale |
| UVA Max Resolution | 0.001mW/cm² |
| Certifications | CE |
| Dimensions | 5.5 × 2.3 × 1" (141 × 58 × 25mm) |
| Display | 2000-count segment LCD |
| Power | 3 × AAA (1.5V) batteries |
| Safety Category | CATII-1000V,CATIII-600V |
| Warranty | 2 years |
| Weight | 5.6oz (160g) |
Specifications are subject to manufacturer updates. Refer to current Extech product documentation for complete operating, safety and maintenance requirements.
Extech Limited Warranty
The Extech EX310 is covered by Extech's standard limited warranty for this product. Register your product with Extech promptly after purchase to activate full coverage.
Warranty term, eligibility, registration requirements, exclusions, and coverage are subject to Extech's complete warranty terms for this model.
