Extech

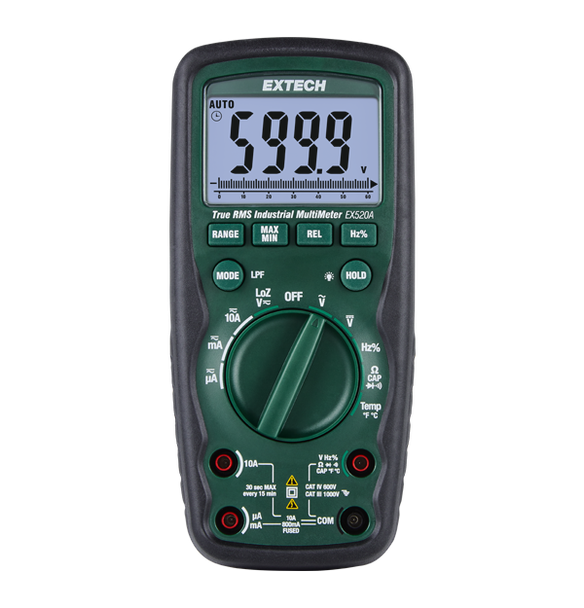

Extech EX520A – Heavy Duty True RMS Multimeter
- Availability:
- Usually ships in 3 business days
Description
The EX520A heavy duty true RMS industrial multimeter measures AC/DC voltage, current, resistance, capacitance, dual sensitivity frequency (electric 1 kHz/electronic 10 MHz), type K thermocouple -45°C to 760°C (-50°F to 1400°F), and bead wire temperature probe -20°C to 250°C (-4°F to 482°F). It features a 6000 count backlit LCD screen, 0.09% basic accuracy, relative/data hold, and auto an auto power function. With a CAT IV-600 V safety rating and an IP67 rating for water and dust resistance, the EX520A is an ideal tool for electricians, HVAC technicians and benchtop technicians who require accuracy, durability, and safety in their electrical testing equipment.
- The EX520A heavy duty true RMS industrial multimeter measures AC/DC voltage, current, resistance, capacitance, dual sensitivity frequency (electric 1 kHz/electronic 10 MHz), type K thermocouple -45°C to 760°C (-50°F to 1400°F), and bead wire temperature probe -20°C to 250°C (-4°F to 482°F).
- It features a 6000 count backlit LCD screen, 0.09% basic accuracy, relative/data hold, and auto an auto power function.
- With a CAT IV-600 V safety rating and an IP67 rating for water and dust resistance, the EX520A is an ideal tool for electricians, HVAC technicians and benchtop technicians who require accuracy, durability, and safety in their electrical testing equipment.
| Model | Extech EX520A |
| AC Current | 0.1 µA to 10 A |
| AC Voltage | 1 mV to 1000 V |
| Capacitance | 0.01 nF to 99.99 mF |
| Continuity | Yes |
| DC Current | 0.1 µA to 10 A |
| DC Voltage | 0.1 mV to 1000 V |
| Duty Cycle | 0.1 to 99.9% |
| Frequency | Electrical: 0.001 Hz to 10 MHz, Electronic: 0.01 Hz to 1 kHz |
| Resistance | 0.1 Ω to 40 MΩ |
| Temperature (Type K) Max Resolution | -45°C to 760°C (-50°F to 1400°F) |
| True RMS | Yes |
| Certifications | CE, UL |
| Dimensions | 183 mm × 83 mm × 55 mm (7.1 in × 3.2 in × 2.1 in) |
| Display | 6000-count segment LCD |
| IP Rating | IP67 |
| Power | 1 × 9 V battery |
| Safety Category | CAT IV-600 V |
| Warranty | 3 years |
| Weight | 375 g (13.2 oz) |
Specifications are subject to manufacturer updates. Refer to current Extech product documentation for complete operating, safety and maintenance requirements.
