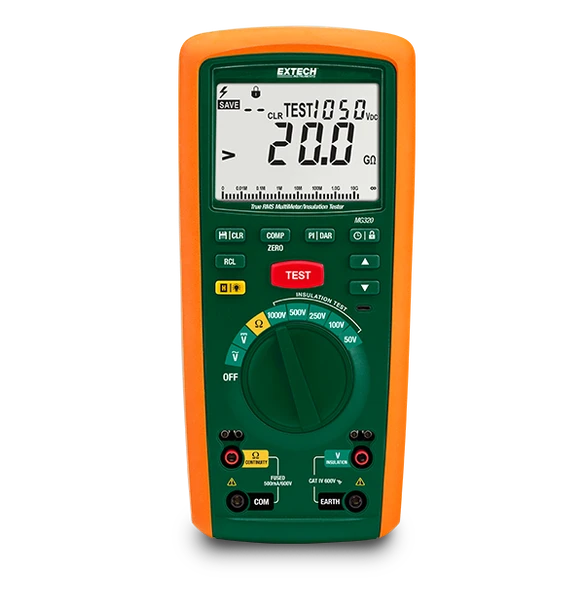

Extech MG320 – CAT IV Insulation Tester/True RMS MultiMeter
- SKU:
- MG320
- UPC:
- 793950383223
- Availability:
- Usually ships in 3 business days
Description
Combines a portable 20GΩ/1000V Insulation Tester with a True RMS MultiMeter. Insulation tester includes PI/DAR modes, programmable timer, and a comparator for custom test configurations and quick results. Multimeter functions include AC/DC Voltage, Resistance, and Continuity Test. Manually store/recall up to 99 readings. Designed with rugged housing and large backlit 6,000 count LCD display with analog bargraph.
- Combines a portable 20GΩ/1000V Insulation Tester with a True RMS MultiMeter.
- Insulation tester includes PI/DAR modes, programmable timer, and a comparator for custom test configurations and quick results.
- Multimeter functions include AC/DC Voltage, Resistance, and Continuity Test.
- Manually store/recall up to 99 readings.
- Designed with rugged housing and large backlit 6,000 count LCD display with analog bargraph.
| Model | Extech MG320 |
| AC Voltage | 600V |
| AC Voltage Basic Accuracy | ±2% |
| AC Voltage Max Resolution | 0.1V |
| Continuity | Yes |
| DC Voltage | 600V |
| DC Voltage Basic Accuracy | ±2% |
| DC Voltage Max Resolution | 0.1V |
| Insulation Resistance | 50MΩ, 100MΩ, 200MΩ,500MΩ, 2000MΩ, 1GΩ, 10GΩ, 20GΩ |
| Insulation Resistance Basic Accuracy | ±3% |
| Insulation Resistance Max Resolution | 0.01MΩ |
| Insulation Test Voltage | 50V, 100V, 250V, 500V, 1000V |
| Insulation Test Voltage Basic Accuracy | 0 to 10% |
| Resistance | 20kΩ |
| Resistance Max Resolution | 0.01Ω |
| True RMS | Yes |
| Certifications | CE |
| Dimensions | 8.9 × 4.1 × 2.3" (225 × 103 × 59mm) |
| Power | 6 × AA (1.5V) batteries |
| Safety Category | CATIV - 600V |
| Warranty | 2 years |
| Weight | 1.5lbs (0.7kg) |
| Included | Complete with test leads, alligator clip, 6 x AA batteries, and soft case. |
Specifications are subject to manufacturer updates. Refer to current Extech product documentation for complete operating, safety and maintenance requirements.
Extech Limited Warranty
The Extech MG320 is covered by Extech's standard limited warranty for this product. Register your product with Extech promptly after purchase to activate full coverage.
Warranty term, eligibility, registration requirements, exclusions, and coverage are subject to Extech's complete warranty terms for this model.
