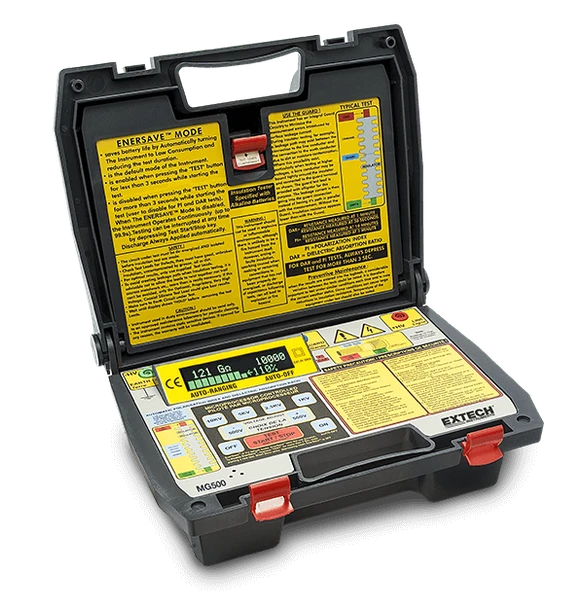

Extech MG500 – Digital High Voltage Insulation Tester
- SKU:
- MG500
- UPC:
- 793950380055
- Availability:
- Usually ships in 3 business days
Description
The MG500 is a digital high voltage insulation tester that tests voltage up to 10kV and measures insulation resistance to 500GOhm. The MG500 has a CAT III 300 Volt safety rating. This product is complete with a year warranty, built-in heavy duty carrying case with cover, test leads, alligator clips, and 8 x C batteries.
- The MG500 is a digital high voltage insulation tester that tests voltage up to 10kV and measures insulation resistance to 500GOhm.
- The MG500 has a CAT III 300 Volt safety rating.
- This product is complete with a year warranty, built-in heavy duty carrying case with cover, test leads, alligator clips, and 8 x C batteries.
| Model | Extech MG500 |
| Automatic Discharge | Yes |
| Dielectric Absorption Ratio | Yes |
| Insulation Resistance | 800kΩ to 500GΩ |
| Insulation Resistance Basic Accuracy | ±5% |
| Insulation Resistance Max Resolution | 1kΩ |
| Insulation Test Voltage | 500VDC to 10kVDC (adjustable in 500V steps) |
| Polarization Index | Yes |
| Certifications | CE |
| Dimensions | 13 × 10.2 × 6.3" (330 × 260 × 160mm) |
| Power | 8 × C (1.5V) batteries |
| Safety Category | CATIII - 300V |
| Warranty | 2 years |
| Weight | 7.9lbs (3.6kg) |
Specifications are subject to manufacturer updates. Refer to current Extech product documentation for complete operating, safety and maintenance requirements.
Extech Limited Warranty
The Extech MG500 is covered by Extech's standard limited warranty for this product. Register your product with Extech promptly after purchase to activate full coverage.
Warranty term, eligibility, registration requirements, exclusions, and coverage are subject to Extech's complete warranty terms for this model.
