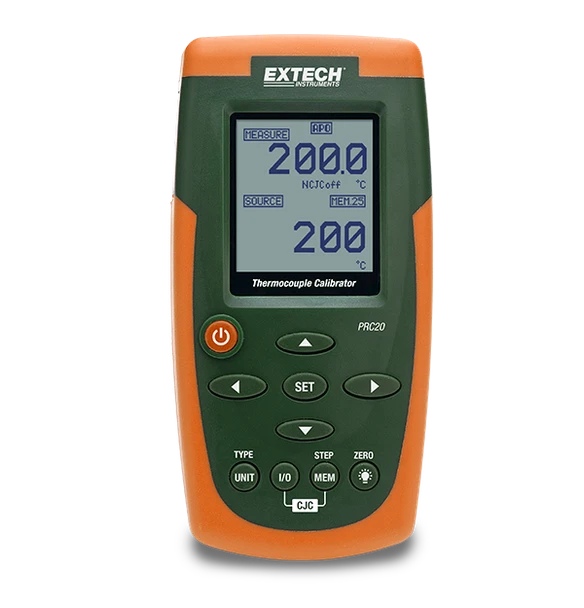

Extech PRC20 – Thermocouple Calibrator
- SKU:
- PRC20
- UPC:
- 793950710210
- Availability:
- Usually ships in 3 business days
Description
The PRC20 sources and measures eight thermocouple type devices (J, K, T, E, C, R, S and N) and provides precision output displayed as Centigrade/Fahrenheit or mV. It has five user adjustable calibration presets and a Type K temperature range of -58 to 2498 degrees F (-50 to 1370 degrees C). The PRC20 is suitable for Lab and field calibration, Engineering research and design, Manufacturing and test engineering, Temperature control process troubleshooting and HVAC applications. Comes with thermocouple calibration cable with subminiature connectors, standard calibration cable with subminiature connectors, 100V-240V AC universal adaptor with four plugs, six 1.5-volt AA batteries, hard case, and user manual.
- The PRC20 sources and measures eight thermocouple type devices (J, K, T, E, C, R, S and N) and provides precision output displayed as Centigrade/Fahrenheit or mV.
- It has five user adjustable calibration presets and a Type K temperature range of -58 to 2498 degrees F (-50 to 1370 degrees C).
- The PRC20 is suitable for Lab and field calibration, Engineering research and design, Manufacturing and test engineering, Temperature control process troubleshooting and HVAC applications.
- Comes with thermocouple calibration cable with subminiature connectors, standard calibration cable with subminiature connectors, 100V-240V AC universal adaptor with four plugs, six 1.5-volt AA batteries, hard case, and user manual.
| Model | Extech PRC20 |
| Input Impedance | 10 MΩ |
| Sampling Rate | 4 times/second |
| Temperature (Type C) Basic Accuracy | 32 to 3182 °F (0 to 1750 °C) |
| Temperature (Type C) Max Resolution | 0.05% of reading ±1° |
| Temperature (Type E) | 0.5° |
| Temperature (Type E) Basic Accuracy | -58 to 1382 °F (-50 to 750 °C) |
| Temperature (Type J) | 0.1° (up to 999.9°) or 1° (over 999.9°) |
| Temperature (Type J) Basic Accuracy | -58 to 1832 °F (-50 to 1000 °C) |
| Temperature (Type J) Max Resolution | 0.05% of reading ±1° |
| Temperature (Type K) Basic Accuracy | 0.1° (up to 999.9°) or 1° (over 999.9°) |
| Temperature (Type K) Max Resolution | -58 to 2498 °F (-50 to 1370 °C) |
| Temperature (Type N) | 0.05% of reading ±1° |
| Temperature (Type N) Basic Accuracy | 0.1° (up to 999.9°) or 1° (over 999.9°) |
| Temperature (Type N) Max Resolution | -58 to 2372 °F (-50 to 1300 °C) |
| Temperature (Type R) | 0.05% of reading ±1° |
| Temperature (Type R) Basic Accuracy | 1° |
| Temperature (Type R) Max Resolution | 32 to 3182 °F (0 to 1750 °C) |
| Temperature (Type S) | 0.05% of reading ±1° |
| Temperature (Type S) Basic Accuracy | 1° |
| Temperature (Type S) Max Resolution | 32 to 3182 °F (0 to 1750 °C) |
| Temperature (Type T) | 0.05% of reading ±1° |
| Temperature (Type T) Basic Accuracy | 0.5° |
| Temperature (Type T) Max Resolution | -184 to 752 °F (-120 to 400 °C) |
| Temperature [IR] | 0.05% of reading ±1° |
| Temperature [Type K] | 0.1° (up to 999.9°) or 1° (over 999.9°) |
| Voltage | -10.00mV to +60.00mV |
| Voltage Basic Accuracy | ±(0.01% of reading + 1 digit) |
| Voltage Max Resolution | 0.01mV |
| Certifications | CE |
| Dimensions | 6.3 × 3.2 × 1.7" (159 × 80 × 44mm) |
| Power | 6 × AA (1.5V) batteries |
| Warranty | 2 years |
| Weight | 8oz (225g) |
Specifications are subject to manufacturer updates. Refer to current Extech product documentation for complete operating, safety and maintenance requirements.
