Extech

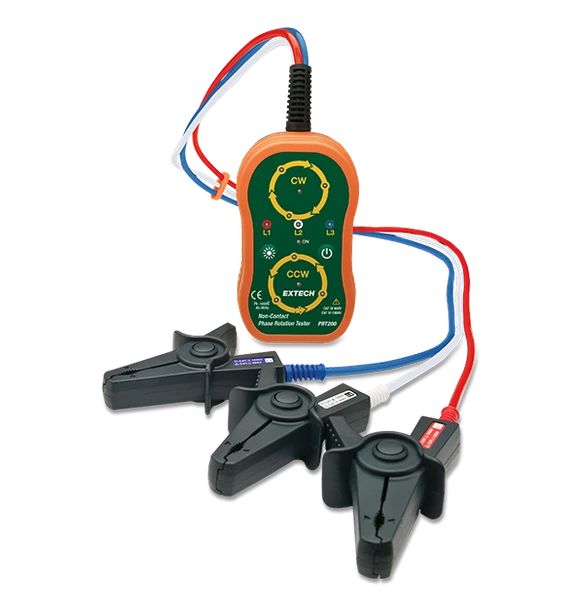

Extech PRT200 – Non-Contact Phase Sequence Tester
- SKU:
- PRT200
- UPC:
- 793950482001
- Availability:
- Usually ships in 3 business days
Description
The Extech PRT200 is a non-contact phase sequence tester with a 75 to 1000 VAC input voltage and 45 to 65 Hz frequency range. This tester features LEDs that indicate whether each phase is live and that phase's orientation; a beeper sounds intermittently when correct phase is detected and continuously if phase is reversed. An adjustable Hi/Lo LED brightness switch makes it easy to take measurements in dimly lit areas or sunlight, while the CAT IV 600 Volt safety rating plus fully-insulated, wide-jaw alligator clips mean it's appropriate for industrial applications. The PRT200 comes complete with a year warranty, three built-in 30 in. test leads with large color-coded alligator clips, 4 AA batteries, and a pouch case.
- The Extech PRT200 is a non-contact phase sequence tester with a 75 to 1000 VAC input voltage and 45 to 65 Hz frequency range.
- This tester features LEDs that indicate whether each phase is live and that phase's orientation; a beeper sounds intermittently when correct phase is detected and continuously if phase is reversed.
- An adjustable Hi/Lo LED brightness switch makes it easy to take measurements in dimly lit areas or sunlight, while the CAT IV 600 Volt safety rating plus fully-insulated, wide-jaw alligator clips mean it's appropriate for industrial applications.
- The PRT200 comes complete with a year warranty, three built-in 30 in.
- test leads with large color-coded alligator clips, 4 AA batteries, and a pouch case.
| Model | Extech PRT200 |
| AC Voltage | 75 to 1000VAC |
| Frequency | 45 to 65Hz |
| Max Conductor Size | 33mm (1.3") diameter |
| Measurement Principle | Static induction |
| Certifications | CE |
| Dimensions | 4.7 × 2.7 × 1.5" (118 × 69 × 38mm) |
| Power | 4 × AA (1.5V) batteries |
| Safety Category | CATIV - 600V |
| Warranty | 2 years |
| Weight | 13oz (370g) |
Specifications are subject to manufacturer updates. Refer to current Extech product documentation for complete operating, safety and maintenance requirements.
Extech Limited Warranty
The Extech PRT200 is covered by Extech's standard limited warranty for this product. Register your product with Extech promptly after purchase to activate full coverage.
Warranty term, eligibility, registration requirements, exclusions, and coverage are subject to Extech's complete warranty terms for this model.
