Extech

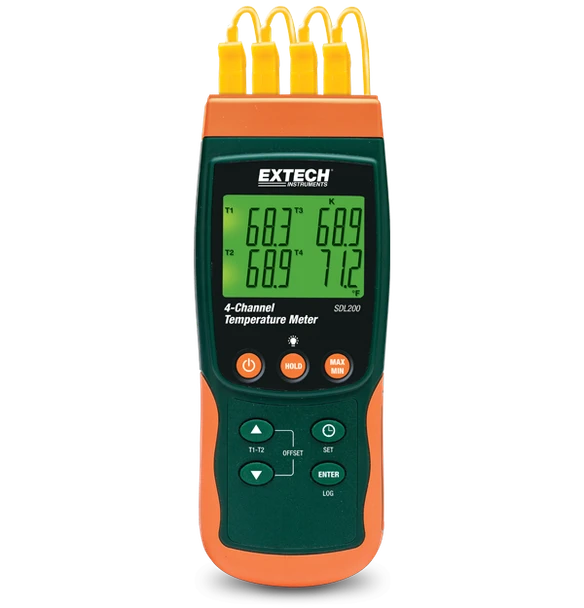

Extech SDL200 – 4-Channel Datalogging Thermometer
- Availability:
- Usually ships in 3 business days
Description
The SDL200 records data on an SD card in Excel format. 4-Channel datalogging with 6 Thermocouple types (J, K, E, T, R,S) and 2-Channel datalogging with RTD (Pt100Ohm) probes. Displays [T1, T2, T3, T4] or differential [T1-T2] readings. Offset adjustment used for zero function to make relative measurements. Stores 99 readings manually and 20M readings via 2G SD card. Records readings with real date and time stamp. User programmable sampling rate from 1 to 3600 seconds. Min/Max, Data Hold, Auto Power Off.
- The SDL200 records data on an SD card in Excel format.
- 4-Channel datalogging with 6 Thermocouple types (J, K, E, T, R,S) and 2-Channel datalogging with RTD (Pt100Ohm) probes.
- Displays [T1, T2, T3, T4] or differential [T1-T2] readings.
- Offset adjustment used for zero function to make relative measurements.
- Stores 99 readings manually and 20M readings via 2G SD card.
- Records readings with real date and time stamp.
- User programmable sampling rate from 1 to 3600 seconds.
- Min/Max, Data Hold, Auto Power Off.
| Model | Extech SDL200 |
| Memory | 20M data records using a 2G SD card |
| Temperature (RTD) | -327 to 1562 °F (-200 to 850 °C) |
| Temperature (RTD) Basic Accuracy | ±0.4% of reading (+1.8°F/+1°C) |
| Temperature (RTD) Max Resolution | 0.1°/1° |
| Temperature (Type E) | -58 to 1652°F (-50 to 900°C) |
| Temperature (Type E) Basic Accuracy | ±0.4% of reading (+1.8 °F/+1 °C) |
| Temperature (Type E) Max Resolution | 0.1 °F/ °C |
| Temperature (Type J) | -148 to 2102°F (-100 to 1150°C) |
| Temperature (Type J) Basic Accuracy | ±0.4% of reading (+1.8 °F/+1 °C) |
| Temperature (Type J) Max Resolution | 0.1 °F/ °C |
| Temperature (Type K) Basic Accuracy | ±0.4% of reading (+1.8 °F/+1 °C) |
| Temperature (Type K) Max Resolution | 0.1 °F/ °C |
| Temperature (Type R) | 32 to 3092°F (0 to 1700°C) |
| Temperature (Type R) Basic Accuracy | ±0.5% of reading (+2 °F/+1 °C) |
| Temperature (Type R) Max Resolution | 1 °F/ °C |
| Temperature (Type S) | 32 to 2732°F (0 to 1500°C) |
| Temperature (Type S) Basic Accuracy | ±0.5% of reading (+2 °F/+1 °C) |
| Temperature (Type S) Max Resolution | 1 °F/ °C |
| Temperature (Type T) | -58 to 752°F (-50 to 400°C) |
| Temperature (Type T) Basic Accuracy | ±0.4% of reading (+1.8 °F/+1 °C) |
| Temperature (Type T) Max Resolution | 0.1 °F/ °C |
| Temperature [Type K] | -148 to 2372°F (-100 to 1300°C) |
| Certifications | SDL200-NIST_S: CE, NIST SDL200_S: CE |
| Dimensions | 7.2 × 2.9 × 1.9" (182 × 73 × 47.5mm) |
| Power | 6 × AA (1.5V) batteries |
| Warranty | 3 years |
| Weight | 17.6oz (500g) |
| Included | Complete with 6 AA batteries, four general purpose Type K bead wire temperature probes, SD card, and hard carrying case. |
Specifications are subject to manufacturer updates. Refer to current Extech product documentation for complete operating, safety and maintenance requirements.
Extech Limited Warranty
The Extech SDL200 is covered by Extech's standard limited warranty for this product. Register your product with Extech promptly after purchase to activate full coverage.
Warranty term, eligibility, registration requirements, exclusions, and coverage are subject to Extech's complete warranty terms for this model.
