Extech

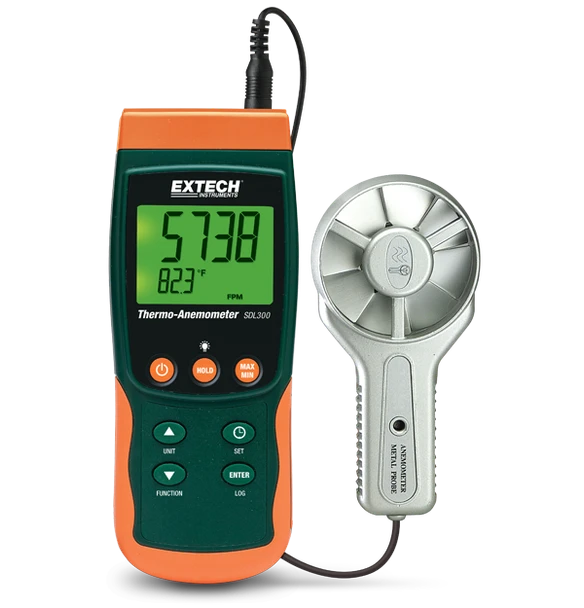

Extech SDL300 – Metal Vane Thermo-Anemometer/Datalogger
- SKU:
- SDL300
- UPC:
- 793950433010
- Availability:
- Usually ships in 3 business days
Description
The SDL300 records data on an SD card in Excel format. Metal Vane withstands temperatures to 158°F (70°C) and air velocity to 6900ft/min. Datalogger date/time stamps and stores readings on an SD card in Excel format for easy transfer to a PC. Adjustable data sampling rate from 1 to 3600 seconds. Stores 99 readings manually and 20M readings via 2G SD card. Type K/J Thermocouple input for high temperature measurements. Large (9999 count) LCD displays Air Velocity and Temperature simultaneously. 2% velocity accuracy via low friction ball bearing vane wheel on 39" (1m) cable. Record/Recall MIN, MAX, Data Hold, Auto Power Off. 9ft (120cm) cable, and hard carrying case.
- The SDL300 records data on an SD card in Excel format.
- Metal Vane withstands temperatures to 158°F (70°C) and air velocity to 6900ft/min.
- Datalogger date/time stamps and stores readings on an SD card in Excel format for easy transfer to a PC.
- Adjustable data sampling rate from 1 to 3600 seconds.
- Stores 99 readings manually and 20M readings via 2G SD card.
- Type K/J Thermocouple input for high temperature measurements.
- Large (9999 count) LCD displays Air Velocity and Temperature simultaneously.
- 2% velocity accuracy via low friction ball bearing vane wheel on 39" (1m) cable.
| Model | Extech SDL300 |
| Air Velocity (ft/min) | 100 to 3940ft/min |
| Air Velocity (ft/min) Basic Accuracy | ±3% |
| Air Velocity (m/s) | 0.5 to 20m/s |
| Air Velocity (m/s) Basic Accuracy | ±3% |
| Air Volume (CFM) | 0 to 99999 CFM |
| Air Volume (CFM) Max Resolution | 0.1 CFM |
| Air Volume (CMM) | 0 to 99999 CMM |
| Air Volume (CMM) Max Resolution | 0.1 CMM |
| Dew Point | -4 to 140 °F (-20 to 60 °C) |
| Relative Humidity | 0.1 to 99.9% |
| Relative Humidity Basic Accuracy | ±3% |
| Temperature (Air) | -4 to 140 °F (-20 to 60 °C) |
| Temperature (Air) Basic Accuracy | ±1.1°F (0.6°C) |
| Wet Bulb | -4 to 140 °F (-20 to 60 °C) |
| Certifications | CE |
| Dimensions | 6.7 × 3 × 1.7" (169 × 78.3 × 44.4mm) |
| Power | 6 × AAA (1.5V) batteries |
| Warranty | 2 years |
| Weight | 7.4oz (210g) |
| Included | Complete with 6 x AA batteries, SD card, metal vane sensor with 3. |
Specifications are subject to manufacturer updates. Refer to current Extech product documentation for complete operating, safety and maintenance requirements.
Extech Limited Warranty
The Extech SDL300 is covered by Extech's standard limited warranty for this product. Register your product with Extech promptly after purchase to activate full coverage.
Warranty term, eligibility, registration requirements, exclusions, and coverage are subject to Extech's complete warranty terms for this model.
