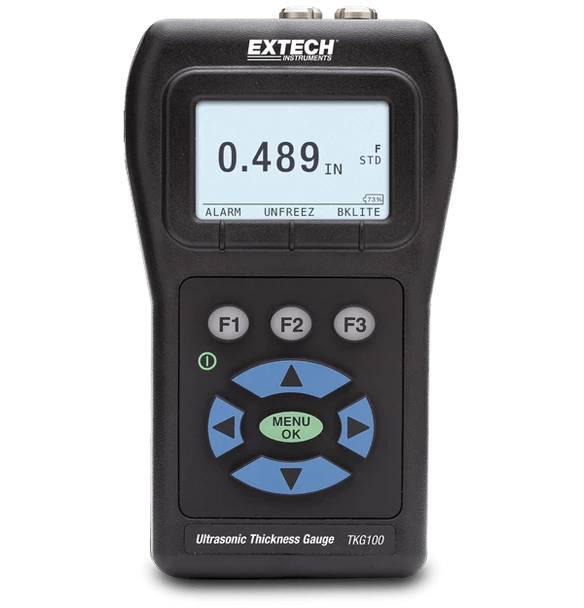

Extech TKG100 – Digital Ultrasonic Thickness Gauge
- SKU:
- TKG100
- UPC:
- 793950151006
- Availability:
- Usually ships in 3 business days
Description
The Extech TKG100 offers Thickness Gauges designed in compact, handheld, rugged housing ideal for field use. The ultrasonic technology allows for non-destructive thickness measurements for primarily steel structures. It includes multiple transducer options for high temperature and difficult to measure materials.
- The Extech TKG100 offers Thickness Gauges designed in compact, handheld, rugged housing ideal for field use.
- The ultrasonic technology allows for non-destructive thickness measurements for primarily steel structures.
- It includes multiple transducer options for high temperature and difficult to measure materials.
| Model | Extech TKG100 |
| Material Velocity Calibration | 0.200 to 0.7362 in/µS (0.508 to 18.699mm/µS) |
| Steel Thickness | 5MHz probe: 0.040 to 20" (1.0 to 508mm); 10MHz probe: 0.030" to 2" (0.76mm to 50.8mm) |
| Certifications | CE |
| IP Rating | IP54 |
| Power | 2 × AA (1.5V) batteries |
| Warranty | 2 years |
| Included | Complete with 2oz bottle of coolant, 2 AA batteries, 5 MHz Transducer, and hard carrying case. |
Specifications are subject to manufacturer updates. Refer to current Extech product documentation for complete operating, safety and maintenance requirements.
Extech Limited Warranty
The Extech TKG100 is covered by Extech's standard limited warranty for this product. Register your product with Extech promptly after purchase to activate full coverage.
Warranty term, eligibility, registration requirements, exclusions, and coverage are subject to Extech's complete warranty terms for this model.
