Extech VT30 – LCD Multifunction Voltage Tester
- SKU:
- VT30
- UPC:
- 793950710302
- Availability:
- Usually ships in 3 business days
Description

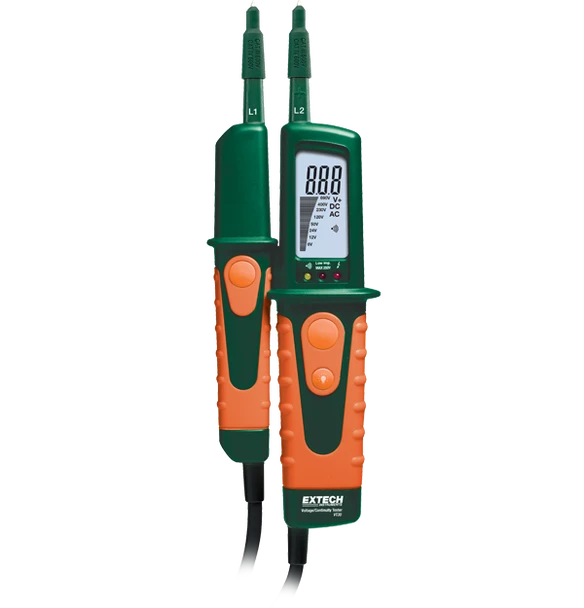

The Extech VT30 is a voltage, continuity and phase tester, featuring a built-in flashlight and backlit digital display with bar graph. This rugged tester is protected by a double molded IP64 housing and offers polarity detection with LEDs for positive and negative DC as well as a CAT III 600 Volt / CATIV 600 Volt safety rating. The VT30 comes complete with a one year warranty, 2 AAA batteries, protective cap, and pouch case.
- The Extech VT30 is a voltage, continuity and phase tester, featuring a built-in flashlight and backlit digital display with bar graph.
- This rugged tester is protected by a double molded IP64 housing and offers polarity detection with LEDs for positive and negative DC as well as a CAT III 600 Volt / CATIV 600 Volt safety rating.
- The VT30 comes complete with a one year warranty, 2 AAA batteries, protective cap, and pouch case.
| Model | Extech VT30 |
| AC Voltage | 0 to 480V AC |
| AC Voltage Basic Accuracy | ±(1.5% of reading + 5 digits) |
| AC Voltage Max Resolution | 1V |
| Built-In Flashlight | Yes |
| Continuity | 0 to 200kΩ, guaranteed on < 50kΩ |
| DC Voltage | 0 to 690V DC |
| DC Voltage Basic Accuracy | ±(1.0% of reading + 3 digits) |
| DC Voltage Max Resolution | 1V |
| Frequency Bandwidth | 50/60Hz |
| Input Impedance | 1MΩ (approx) |
| Low Impedance | 12-250V AC/DC; impedance <6kΩ |
| Max Current | Ω1.0mA (400VAC); Ω1.5mA (690VDC) |
| Response Time | Updates 2-3 times/sec |
| Certifications | CE |
| Dimensions | 9.4 × 3 × 1.6" (240 × 78 × 40mm) |
| IP Rating | IP64 |
| Power | 2 × AAA (1.5V) batteries |
| Safety Category | CATIII - 600V, CATIV - 600V |
| Warranty | 2 years |
| Weight | 9.2oz (260G) |
Specifications are subject to manufacturer updates. Refer to current Extech product documentation for complete operating, safety and maintenance requirements.
Extech Limited Warranty
The Extech VT30 is covered by Extech's standard limited warranty for this product. Register your product with Extech promptly after purchase to activate full coverage.
Warranty term, eligibility, registration requirements, exclusions, and coverage are subject to Extech's complete warranty terms for this model.
