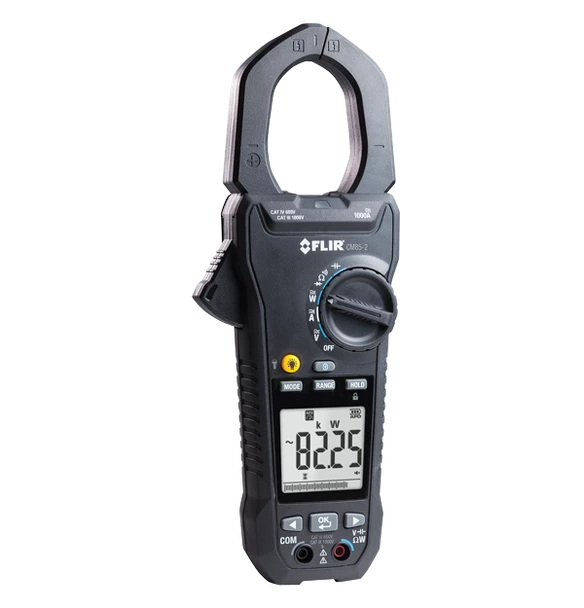

FLIR CM85-2 True RMS Power Clamp Meter – 1000A Clamp Meter with Wireless METERLiNK®
- Availability:
- Usually ships in 3 business days
Description
The FLIR CM85-2 True RMS Power Clamp Meter is a 1000 A clamp meter for industrial power work, measuring not just current and voltage but real power, power factor, and harmonics. Choose the standard or combo configuration where offered.
The CM85-2 clamps conductors up to 45 mm, measures AC/DC current to 1000 A and voltage to 1000 V, and adds total harmonic distortion, phase rotation, and inrush capture. Bluetooth METERLiNK® sends readings to the FLIR app, a built-in worklight and laser aid targeting in dark cabinets, and the CAT IV rating backs it up for utility and plant work.
- Industrial True RMS power clamp meter with advanced power analysis and VFD filtering
- Power quality testing: harmonics (THD and individual harmonics), inrush current, and phase-rotation testing
- True RMS AC current up to 1000 A, including measurements around multiple conductors
- Dual LED worklights illuminate dark cabinets
- Ergonomic industrial design built for all-day electrical troubleshooting
- Stream live data over Bluetooth to the FLIR METERLiNK app — compare logs, set alarm thresholds, view trends, and create reports
- CAT IV-600 V / CAT III-1000 V safety rating
Typical Applications
- Industrial power quality checks
- Motor and load analysis
- Utility work
- Three-phase troubleshooting
| Model | FLIR CM85-2 True RMS Power Clamp Meter |
| Jaw Opening | 45 mm (1.77 in) |
| AC Current | 99.99 A / 999.9 A; 50–60 Hz ±(2%+5); >60–400 Hz ±(2.5%+5) |
| DC Current | 99.99 A ±(2%+0.5 A); 999.9 A ±(2%+5) |
| AC Voltage | 99.99/999.9 V, 50–500 Hz ±(1%+5) |
| DC Voltage | 99.99/999.9 V ±(0.7%+2) |
| Safety Category | CAT IV-600 V, CAT III-1000 V |
| Harmonics | THD AC A/V 99.9% ±(3.0%+10); H01–H12 ±(5%+10); H13–H25 ±(10%+10) |
| Capacitance | 3.999 µF–3.999 mF ±(1.9%+8) |
| Continuity | 999.9 Ω ±(1.0%+5) |
| Diode Test | 0.40–0.80 V ±0.1 V |
| Inrush ACA | 99.99 A ±(3%+0.3 A); 999.9 A ±(3%+5) |
| Power Factor | -1.00 to +1.00 ±3° ±1 digit |
| Frequency | 20.00 Hz–9.999 kHz ±(0.5%+3) |
| Measuring Rate | 3 samples per second |
| Resistance | 999.9 Ω / 9.999 kΩ / 99.99 kΩ ±1.0% |
| Peak Hold | ACV 140.0/1400 V ±(3.0%+15); ACA 140.0/1400 A ±(3.5%+15) |
| Watts (DC & AC) | 9.999 kW / 99.99 kW / 999.9 kW (10 V, 5 A min) ±3% |
| VFD AC Voltage | 99.99/999.9 V ±(1%+5) |
| VFD AC Current | ±(2%+5) |
| Bluetooth Range | 10 m (32 ft) |
| Auto Power Off | ~30 minutes |
| Battery Life | 50 h alkaline (backlight/worklight/Bluetooth off) |
| Power | 6 × 1.5 V AAA alkaline |
| Size | 276 × 101 × 50 mm |
| Weight | 0.65 kg (1.43 lb) total with batteries |
| Worklights | Yes |
| Certifications | UL, CE, FCC, IC, UKCA, CSAUS |
| Drop Test | 1.2 m (4 ft) |
| Safety Standards | IEC 61010-1 |
Specifications are subject to manufacturer updates. Refer to current FLIR product documentation for complete operating, safety and maintenance requirements.
