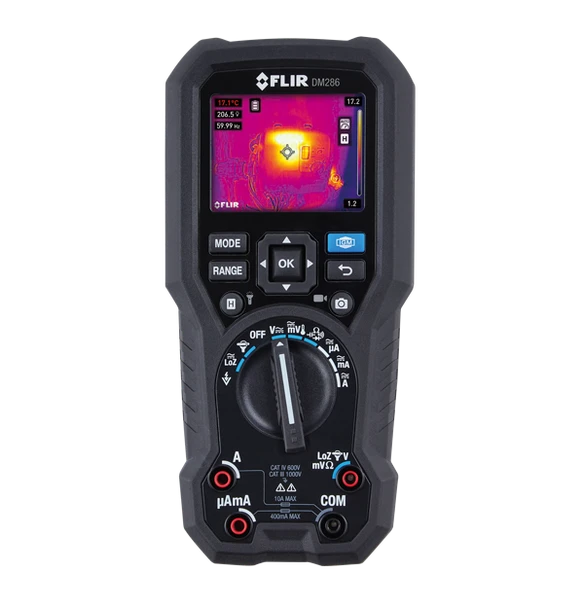

FLIR DM286 Industrial Thermal Imaging Multimeter – TRMS Multimeter with IGM™ & METERLiNK®
- Availability:
- Usually ships in 3 business days
Description
The FLIR DM286 Industrial Thermal Imaging Multimeter is a true-RMS digital multimeter with a built-in thermal imager — IGM™ (Infrared Guided Measurement) lets you see hot spots before you ever touch a test lead to the circuit. Choose the standard meter or the NIST-calibrated configuration where offered.
The DM286 combines a 160 × 120 Lepton thermal imager with a full-featured 6000-count TRMS multimeter measuring voltage, current, resistance, capacitance, frequency, and temperature, with VFD mode and LoZ for ghost-voltage diagnostics. It stores up to 30,000 radiometric images, logs data, and connects through the FLIR METERLiNK® app — all in a CAT IV-rated, drop-tested housing.
- Industrial thermal imaging multimeter with IGM (Infrared Guided Measurement) and FLIR MSX, which embosses visible-light detail onto thermal images in real time
- 160 × 120 Lepton thermal micro-camera plus embedded visible-light camera and bright LED work light
- Records video clips in both IR and visible ranges
- Stores up to 30,000 radiometric thermal images and 100 log files for all-day inspection work
- Stream data live to a mobile device and capture/share measurements, images, and video with the FLIR METERLiNK app
- True RMS multimeter functions with VFD mode and LoZ for advanced electrical troubleshooting
- Redesigned successor to the FLIR DM285, with longer battery run time
Typical Applications
- Industrial electrical maintenance
- Panel and switchgear inspections
- Motor and drive troubleshooting
- Facility condition monitoring
| Model | FLIR DM286 Industrial Thermal Imaging Multimeter |
| IR Resolution | 160 × 120 (19,200 pixels) |
| Detector | FLIR Lepton |
| IR Sensitivity | 150 mK |
| Spectral Range | 8–14 µm |
| Frame Rate | 9 Hz |
| Field of View (Visual) | 71° × 56° |
| Focus | Fixed |
| Image Modes | Thermal MSX, Thermal only, Digital only |
| Color Palettes | Iron, rainbow, arctic, white hot, black hot |
| Visual Resolution | 2 MP (1600 × 1200) |
| Display | 2.8 in |
| Display Counts | 6000 |
| AC/DC Voltage | 1000 V AC RMS ±(1.0%+3); 1000 V DC ±(0.09%+3) |
| AC/DC LoZ V | 1000 V ±(1.3%+4) |
| AC/DC mVolt | AC 600.0 mV ±(1.0%+3); DC ±(0.2%+3) |
| AC/DC Amps | 10.00 A AC RMS ±(1.5%+3); 10.00 A DC ±(1.0%+3) |
| Resistance | 6.000 MΩ ±(0.9%+5); 60.00 MΩ ±(3.0%+5) |
| Capacitance | 10.00 mF ±(4.0%+5) |
| Continuity Threshold | 10–100 Ω |
| Diode Test | 1.500 V ±0.9% |
| Frequency Counter | 100.00 kHz ±(0.1%+5) |
| Measuring Rate | 3 samples per second |
| Temperature Accuracy | ±3°C or ±3% (>25°C); ±5°C (-10 to 25°C) |
| Type K Temperature | -40°C to 400°C; DMM ±(1.0%+3°C) / IGM ±(1.0%+5°C) |
| VFD AC Voltage | 1000 V ±(1.3%+4) at 45–65 Hz |
| True RMS | Yes |
| Connectivity | Bluetooth BLE; Protocol: METERLiNK |
| Image Format | Radiometric |
| Storage | 40,000 readings per set; up to 30,000 stored images |
| Media | eMMC 4 GB |
| Video Recording | 50 min max (20 s max for transmission) |
Specifications are subject to manufacturer updates. Refer to current FLIR product documentation for complete operating, safety and maintenance requirements.
FLIR Limited Warranty
The FLIR DM286 Industrial Thermal Imaging Multimeter is covered by FLIR's standard limited warranty for this product line. Register your product with FLIR promptly after purchase to activate full coverage.
Warranty eligibility, registration requirements, exclusions, and coverage are subject to FLIR's complete warranty terms.
