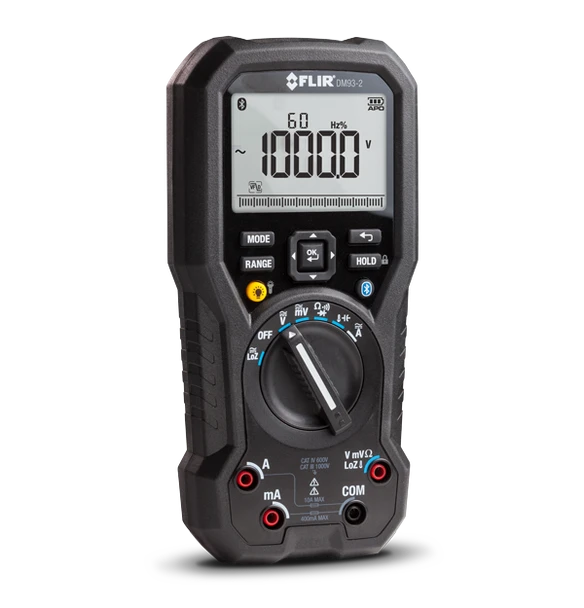

FLIR DM93-2 TRMS Industrial Multimeter – True RMS Digital Multimeter
- Availability:
- Usually ships in 3 business days
Description
The FLIR DM93-2 TRMS Industrial Multimeter is a 40,000-count digital multimeter built for industrial electricians who need precision, logging, and connectivity in a CAT IV instrument. Choose the standard or NIST-calibrated configuration where offered.
The DM93-2 measures AC/DC voltage to 1000 V and current to 10 A with basic accuracy to 0.05%, plus resistance, capacitance, frequency, and temperature, with VFD filtering for drive work. Bluetooth METERLiNK® streams readings to the FLIR app, onboard logging records up to 40,000 readings, and the rugged housing is rated CAT IV-600 V / CAT III-1000 V.
- World-class digital multimeter with advanced variable-frequency drive (VFD) filtering to accurately analyze non-traditional sine waves and noisy signals
- Dual display shows voltage and frequency at once
- True RMS voltage and current measurements
- Low Impedance (LoZ) mode eliminates ghost voltage error readings
- Powerful LED worklights eliminate the need for a flashlight in dim lighting
- Durable double-molded construction, IP54 rated and 3 m drop tested
- Large easy-to-read digits, backlit display, and analog bar graph
- Wireless communication with the FLIR Meterlink app to capture readings, images, and videos, create reports, perform comparisons over time, and set custom alarm thresholds
Typical Applications
- Industrial maintenance
- Electrical contracting
- Drive and motor work
- Precision troubleshooting
| Model | FLIR DM93-2 TRMS Industrial Multimeter |
| Display Counts | 40,000 |
| AC Current | 10.000 A ±1.0% |
| AC Voltage | 1000.0 V ±0.5% |
| Capacitance | 40.00 mF ±0.9% |
| Category Rating | CAT IV-600 V, CAT III-1000 V |
| Continuity Threshold | 30 Ω ±0.2% |
| DC Current | 10.000 A ±0.2% |
| DC Voltage | 1000.0 V ±0.05% |
| Diode Test | 2 V ±1.5% |
| Frequency | 100.00 kHz ±5 digits |
| Measuring Rate | 10 samples per second |
| Resistance | 40.00 MΩ ±0.2% |
| Temperature Range | -200°C to 1200°C (-328°F to 2192°F) ±1.0% |
| Temperature Type K Thermocouple | Yes |
| VFD AC Voltage | 1000.0 V ±0.5% |
| Bluetooth Range Max | 10 m (32 ft) |
| Data Recording | 10,000 records with METERLiNK |
| Memory | 99 internal storage locations |
| Auto Power Off | Default: 10 minutes |
| Battery Life | ~100 hours with alkaline batteries (backlight, worklight, and Bluetooth off) |
| Battery Type | 6 × 1.5 V AAA alkaline batteries |
| Size | 207.1 × 98.1 × 60.7 mm (8.15 × 3.86 × 2.39 in) |
| Weight | 601 g (1.33 lb) including batteries |
| Worklights | Yes |
| Certifications | UL, CE, FCC, UKCA |
| Drop Test | 3 m (9.8 ft) |
| IP Rating | IP54 dust-protected and splash-resistant |
| Packaging Size | 28.5 × 15 × 10.4 cm (11.22 × 5.91 × 4.09 in) |
| Included | Premium test leads, Type K temperature probe (204°C, 400°F), warranty card, 6 × AAA Energizer batteries, Quick Start Guide |
Specifications are subject to manufacturer updates. Refer to current FLIR product documentation for complete operating, safety and maintenance requirements.
FLIR Limited Warranty
The FLIR DM93-2 TRMS Industrial Multimeter is covered by FLIR's standard limited warranty for this product line. Register your product with FLIR promptly after purchase to activate full coverage.
Warranty eligibility, registration requirements, exclusions, and coverage are subject to FLIR's complete warranty terms.
