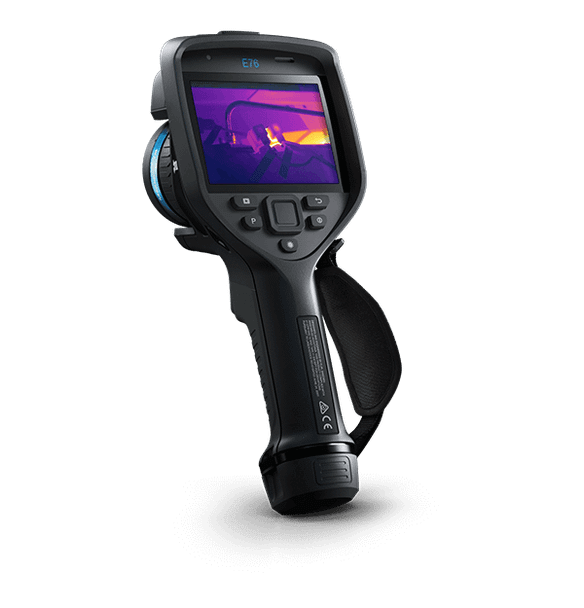

FLIR E76 Advanced Thermal Imaging Camera – MSX® Professional Infrared Camera
- Availability:
- Usually ships in 3 business days
Description
The FLIR E76 Advanced Thermal Imaging Camera is a professional-grade handheld thermal camera for electrical, mechanical, and building inspections. It adds wide temperature range options and interchangeable telephoto and wide-angle lenses for everything from switchgear to rooftops.
The E76 delivers 320 × 240 infrared resolution with thermal sensitivity as low as <30 mK, FLIR MSX® image enhancement, a 5 MP visual camera with LED lamp, and a bright 4-inch touchscreen display. Interchangeable AutoCal™ lenses, laser-assisted autofocus, and on-camera inspection routing keep surveys fast and repeatable, while Wi-Fi reporting through FLIR Ignite™ gets images documented and shared.
- 320 × 240 IR resolution step-up model with laser-assisted autofocus (continuous and one-shot laser distance meter modes)
- Interchangeable AutoCal lenses: 42°, 24°, 14°, and 80° fields of view, plus FlexView dual-FOV lens options
- NETD as low as <30 mK (42° lens) at 30°C
- UltraMax super-resolution and MSX® image enhancement
- Three area boxes (min/max/avg) plus 3 live spot meters per page copy
- FLIR Inspection Route enabled and FLIR Ignite cloud connectivity
- Optional high-temperature range up to 1000°C with the T199559 High Temperature Option
- 4-inch, 640 × 480 touchscreen; >2.5 hours of battery operation
Typical Applications
- Electrical inspections
- Mechanical maintenance
- Building diagnostics
- Preventive maintenance programs
| Model | FLIR E76 Advanced Thermal Imaging Camera |
| IR Resolution | 320 × 240 |
| Thermal Sensitivity/NETD | <30 mK (42° lens), <40 mK (24° lens), <50 mK (14° lens), <40 mK (80° lens) at 30°C |
| Accuracy | ±2°C (±3.6°F) or ±2% of reading |
| Field of view (FOV) options | 42° lens: 42° × 32°; 24° lens: 24° × 18°; 14° lens: 14° × 10°; 80° lens: 80° × 63° |
| Digital Camera | 5 MP (disabled with 80° lens) |
| Display | 4", 640 × 480 touchscreen |
| Detector Type | Uncooled microbolometer, 17 µm |
| Digital Zoom | 1-4× for most configurations; 1-8× for Dual FOV and 80° configurations |
| f-number | 14° lens: 1.5; 24°/80° lenses: 1.3; 42° lens: 1.1 |
| Focal Length | 42° lens: 10 mm; 24° lens: 17 mm; 14° lens: 29 mm; 80° lens: 5 mm |
| Focus | Continuous LDM, One-shot LDM, One-shot contrast, Manual |
| Image Frequency | 30 Hz |
| Lens Identification | Automatic |
| Minimum Focus Distance | 0.15 m (42°/24° lenses); 1.0 m (14° lens) |
| Spatial resolution (IFOV) | 80° lens: 5.2; 42° lens: 2.41; 24° lens: 1.31; 14° lens: 0.75 mrad/pixel |
| Spectral Range | 7.5-14 µm |
| UltraMax | Yes |
| Object Temperature Range | -20°C to 120°C; 0°C to 650°C; 300°C to 1000°C with T199559 High Temperature Option |
| Spot Meter | 3 ea. live |
| Battery operating time | >2.5 hours |
| Included | Infrared camera with lens, 2 batteries, battery charger, hard transport case, lanyards, front lens cap, power supplies, printed documentation, SD card (8 GB), cables (USB 2.0 A to USB Type-C, USB Type-C to HDMI, USB Type-C to USB Type-C), License card: FLIR Thermal Studio Starter |
Specifications are subject to manufacturer updates. Refer to current FLIR product documentation for complete operating, safety and maintenance requirements.
FLIR Limited Warranty
The FLIR E76 Advanced Thermal Imaging Camera is covered by FLIR's standard limited warranty: 2 years on parts and labor and 10 years on the infrared detector, when the product is properly registered with FLIR within 60 days of the original retail purchase date.
Warranty eligibility, registration requirements, exclusions, and coverage are subject to FLIR's complete warranty terms.
