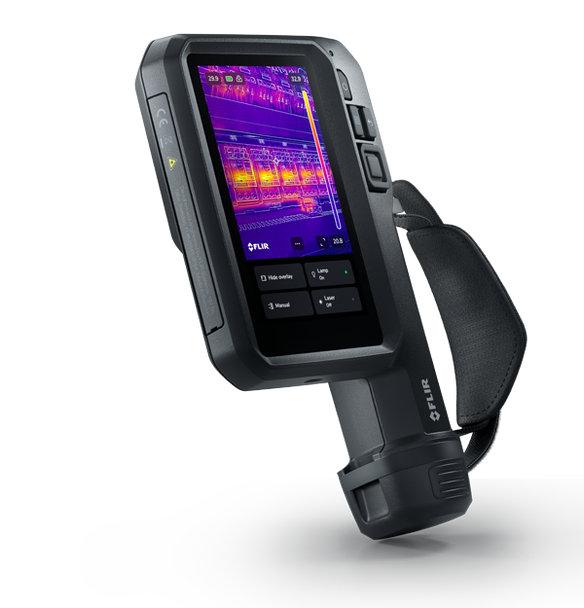

FLIR i64 App-Enabled Thermal Camera – 480 × 640 Connected Thermal Imager
- SKU:
- 18455-1201
- UPC:
- 845188033637
- Availability:
- Usually ships in 3 business days
Description
The FLIR i64 App-Enabled Thermal Camera is a connected thermal imager built around the FLIR Ignite™ cloud workflow — capture on camera, and images are organized, shared, and reported automatically.
The i64 delivers 480 × 640 infrared resolution with thermal sensitivity under 40 mK, an 8 MP visual camera with autofocus, and a large touchscreen running FLIR's app-based interface. Wi-Fi (and LTE on equipped configurations) uploads images straight to Ignite, while the rugged housing and long battery life suit full days of route-based inspection.
- App-enabled thermal camera on the FLIR Ace platform — runs apps from FLIR, customers and third-party developers
- High-resolution 480 × 640 IR imaging with <40 mK sensitivity for demanding inspections
- Measures up to 550°C (1022°F)
- Wide 38° × 49° field of view for IR-window and switchgear inspections
- Delta T measurements compliant with NFPA 70B, compared against baseline readings
- Automatic uploads to FLIR Ignite and Assetlink for routes, asset trends and work orders
- Meterlink app adds load, voltage and other electrical measurements to thermal data
- Glove-friendly controls, 5-inch display and on-camera routing for consistent team inspections
Typical Applications
- Route-based inspections
- Electrical and mechanical surveys
- Building diagnostics
- Team reporting workflows
| Model | FLIR i64 App-Enabled Thermal Camera |
| IR Resolution | 480 × 640 |
| Thermal Sensitivity/NETD | <40 mK at 30°C (86°F) |
| Accuracy | ±2°C (±3.6°F) or ±2% |
| Field of view (FOV) | 38° × 49° |
| Digital Camera | 8 MP, Autofocus |
| Digital Camera FOV | 50.5° × 64.5° |
| Image Modes | MSX®, Thermal, Picture-in-Picture, Digital camera |
| Storage Media | Internal memory, onboard FLIR Ignite cloud and Assetlink connectivity |
| Automatic Image Adjustment | Yes |
| Manual Image Adjustment | Yes |
| Color Palettes | Iron, White hot, Black hot, Rainbow, Arctic, Lava, Rainbow HC |
| Color | Black |
| Display Resolution | 720 × 1280 |
| Display Type | 5 in. color LCD |
| f-number | 1.4 |
| Focus | Fixed focus |
| Image Frequency | 30 Hz |
| Laser Alignment | Position of laser pointer automatically displayed on the infrared image |
| Minimum Focus Distance | 0.5 m |
| Spatial resolution (IFOV) | 1.4 mrad |
| Spectral Range | 7.5 to 13 µm |
| Delta T | Yes, NFPA 70B compliant |
| Emissivity Correction | Variable from 0.1 to 1.0 |
| Isotherm | Above, Below |
| Measurement Corrections | Emissivity, matt/semi-matt/semi-gloss + custom value, reflected apparent temperature, atmospheric compensation |
| Object Temperature Range | -20°C to 200°C (-4°F to 392°F); 10°C to 550°C (50°F to 1022°F) |
| Spot Meter | Center spot, box with min./max. |
| Touch Screen | Capacitive touch |
| Text | Text annotation on image using onscreen keyboard |
| Camera size (L x W x H) | 225 × 136 × 73 mm (8.9 × 5.4 × 2.9 in) |
| Camera weight incl battery | 0.8 kg (1.76 lb) |
| Included | Not itemized in the FLIR product-page sections retrieved. The FLIR iXX 'Build Your i64' configurator describes a purchase bundle with 1 year of FLIR Ignite Pro, an optional FLIR Protect extended warranty and FLIR Academy training; treat base box contents as unconfirmed. |
Specifications are subject to manufacturer updates. Refer to current FLIR product documentation for complete operating, safety and maintenance requirements.
FLIR Limited Warranty
The FLIR i64 App-Enabled Thermal Camera is covered by FLIR's standard limited warranty: 2 years on parts and labor and 10 years on the infrared detector, when the product is properly registered with FLIR within 60 days of the original retail purchase date.
Warranty eligibility, registration requirements, exclusions, and coverage are subject to FLIR's complete warranty terms.
