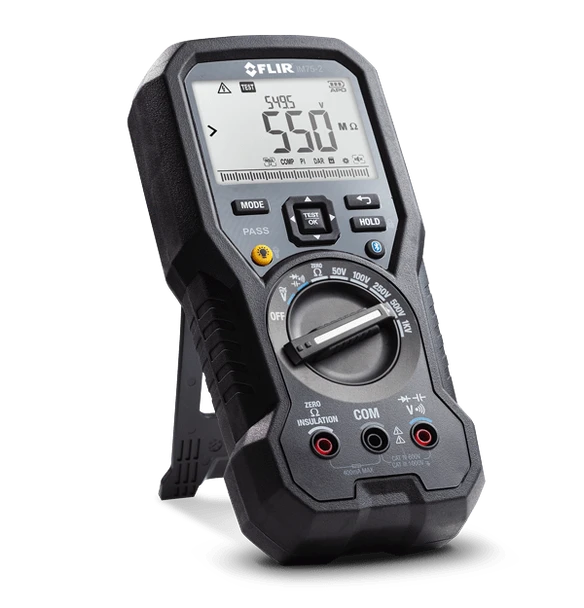

FLIR IM75-2 Insulation & DMM Combo – Insulation Tester Multimeter with METERLiNK®
- Availability:
- Usually ships in 3 business days
Description
The FLIR IM75-2 Insulation Tester and Digital Multimeter combines a multi-range insulation resistance tester with a full true-RMS multimeter, so insulation health and everyday electrical measurements happen with one instrument. Choose the standard or NIST-calibrated configuration where offered.
The IM75-2 tests insulation at 50, 100, 250, 500, and 1000 V with resistance ranges to 20 GΩ, and adds earth bond resistance, capacitance, frequency, and diode tests plus 1000 V AC/DC measurement. METERLiNK® Bluetooth connectivity, compare mode with pass/fail indication, and bright LED worklights make motor, cable, and equipment insulation testing faster and better documented.
- Advanced multifunction digital multimeter combined with a premier handheld insulation tester
- Specialty insulation modes: polarization index, dielectric absorption, and earth bond resistance
- Insulation tests in instant, continuous, and timed modes, up to 1 kV test voltage and 20 GΩ
- Multi-color LED compare mode gives instant pass/fail insulation checks
- VFD filtering for accurate readings on variable-frequency drives, with dual display of voltage and frequency
- True RMS 1000 V measurements
- LED worklights; double-molded IP54 housing rated for a 3 m drop
- METERLiNK app connectivity to capture, report, and share measurements, compare results over time, and set custom alarm thresholds
Typical Applications
- Motor insulation testing
- Cable and equipment checks
- Preventive maintenance
- Electrical contracting
| Model | FLIR IM75-2 Insulation & DMM Combo |
| Insulation Resistance | 4.000 MΩ ±(1.5%+5); 40.00 MΩ ±(1.5%+5); 400.0 MΩ ±(3.0%+5); 4000 MΩ ±(3.0%+5); 4.1 GΩ–20.0 GΩ ±(10.0%+3) |
| Insulation Test Voltages | 50 V (max 50.0 MΩ), 100 V (100.0 MΩ), 250 V (250.0 MΩ), 500 V (500.0 MΩ), 1000 V (20 GΩ) |
| Category Rating | CAT IV-600 V, CAT III-1000 V |
| AC Voltage | 1000.0 V: 50–60 Hz ±(1.5%+5); 61–500 Hz ±(2.0%+5) |
| VFD AC Voltage | 1000.0 V: 50–60 Hz ±(1.5%+5); 61–400 Hz ±(5.0%+5) |
| DC Voltage | 1000.0 V ±(0.1%+5) |
| Capacitance | 1000 µF ±(1.2%+2); 10.00 mF ±(1.2%+20) |
| Continuity | 400.0 Ω ±(0.5%+2) |
| Frequency (ACV) | 400.0 Hz / 4.000 kHz / 40.00 kHz ±5 digits |
| Earth Bond Resistance | 40.00 Ω ±(1.5%+5); 400.0 Ω ±(1.5%+3); 4000 Ω ±(1.5%+3); 40.00 kΩ ±(1.5%+3) |
| Memory | 99 storage locations |
| Bluetooth Range | 10 m (32 ft) |
| Battery | 6 × 1.5 V AAA alkaline |
| Certifications | FCC Class B, CE, UL, UKCA, RCM |
| IP Rating | IP54 |
| Operating Temperature | 0°C to 50°C |
| Drop Test | 3 m |
Specifications are subject to manufacturer updates. Refer to current FLIR product documentation for complete operating, safety and maintenance requirements.
FLIR Limited Warranty
The FLIR IM75-2 Insulation & DMM Combo is covered by FLIR's standard limited warranty for this product line. Register your product with FLIR promptly after purchase to activate full coverage.
Warranty eligibility, registration requirements, exclusions, and coverage are subject to FLIR's complete warranty terms.
